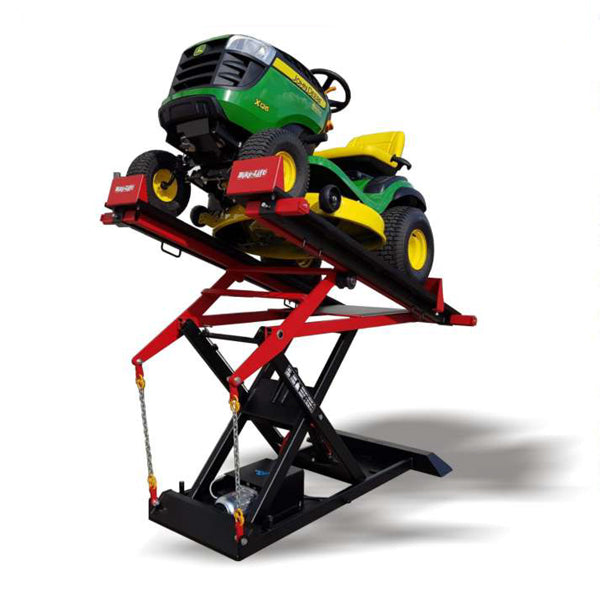

The ultimate dedicated quad or ride-on mower service lift. It has two elevating and tiliting platforms that can raise up to 100 cm in the front end and up to 155 cm in the rear end making it much easier to access the lower part of the vehicle.
Specifications:
Max load capacity: 500kg lift capacity
Maximum height (horizontal): 80 cm
Minimum height: 20 cm
Maximum height (front end): 100 cm
Maximum height (rear end): 155 cm
Safety poisiton: 3
Rail size: 200 x 26 cm
Run-up ramp size: 82 x 24 cm
Overal dimensions: 200 x 130 cm
Weight 285 kg
