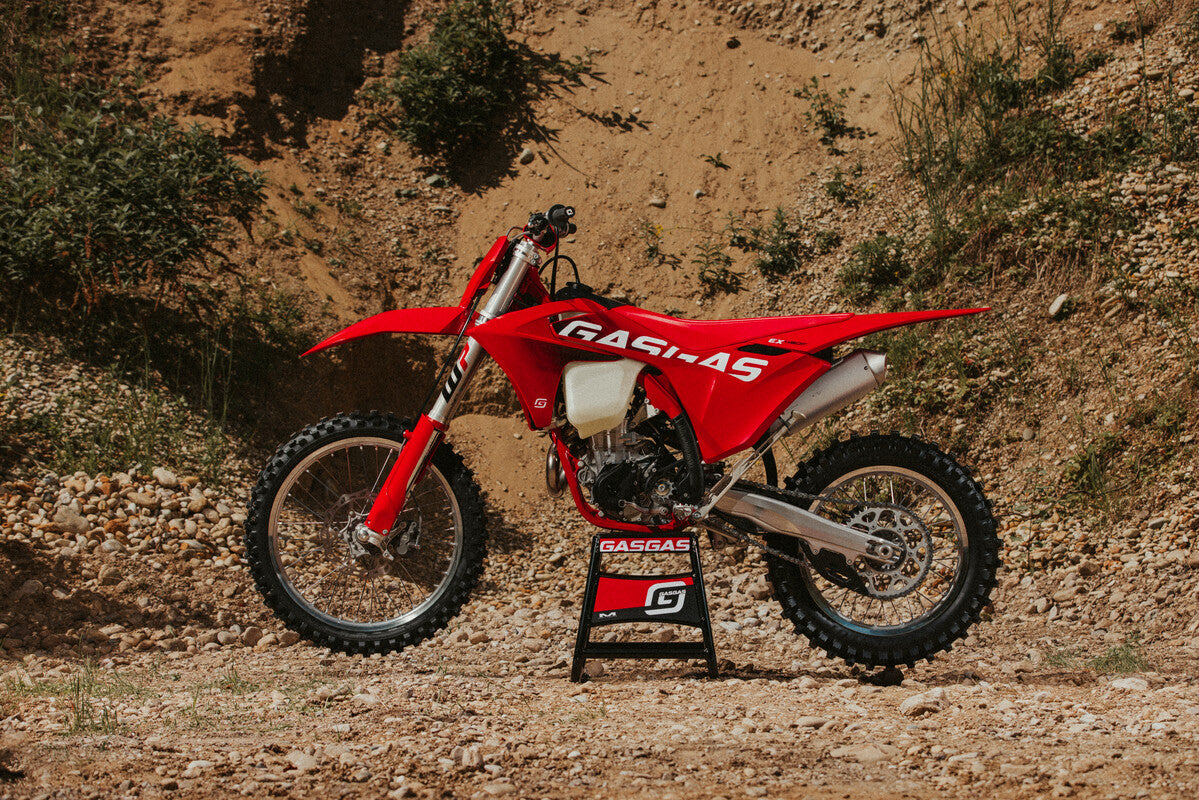

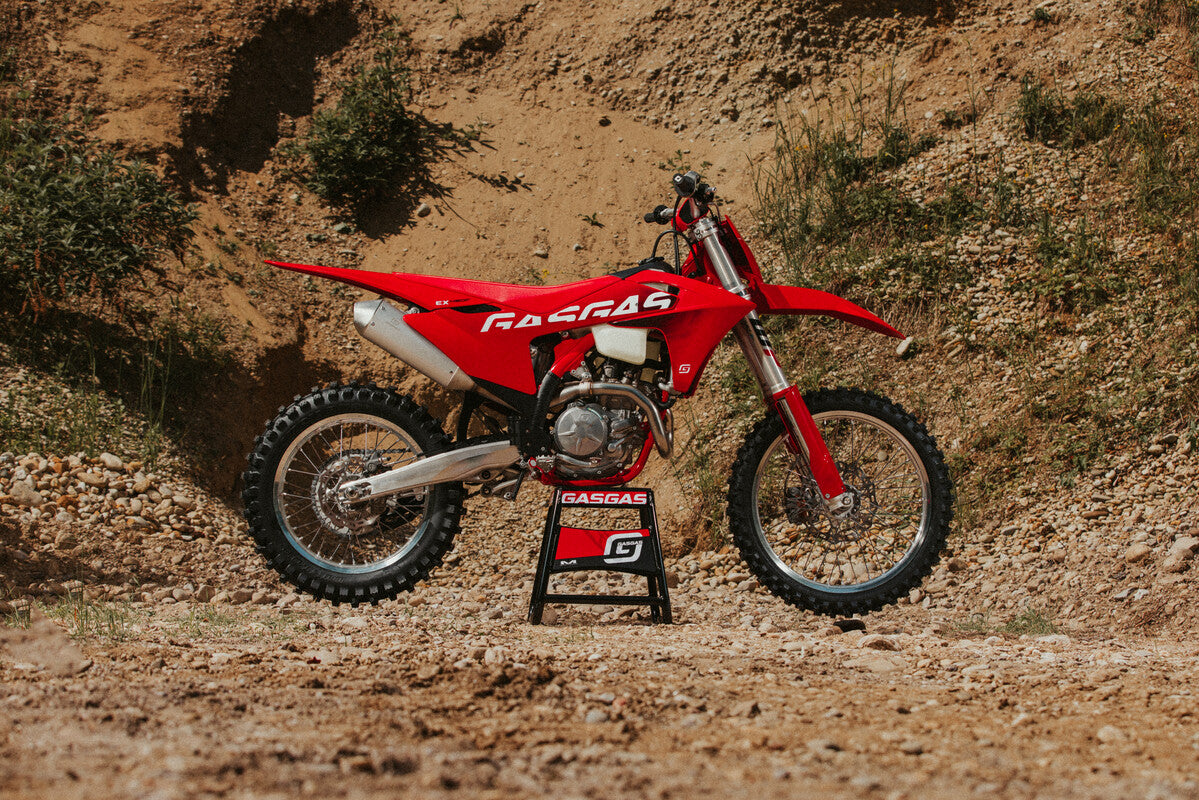

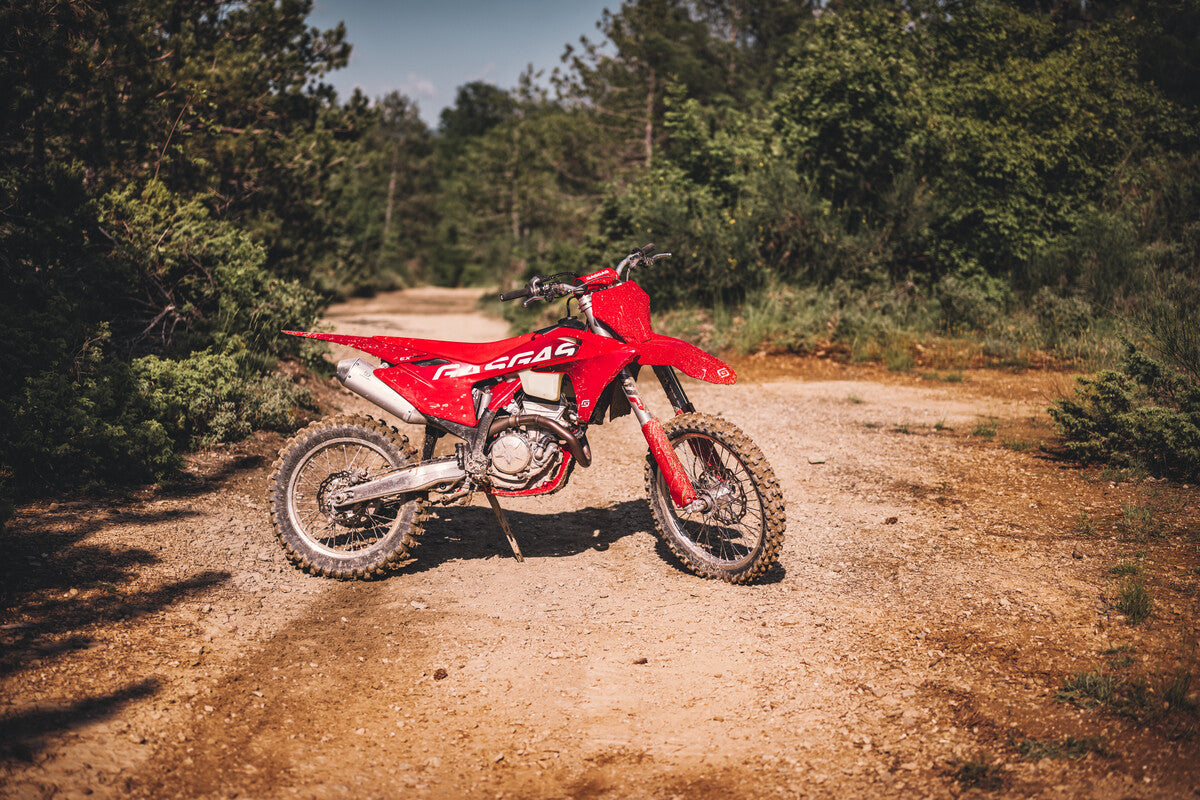

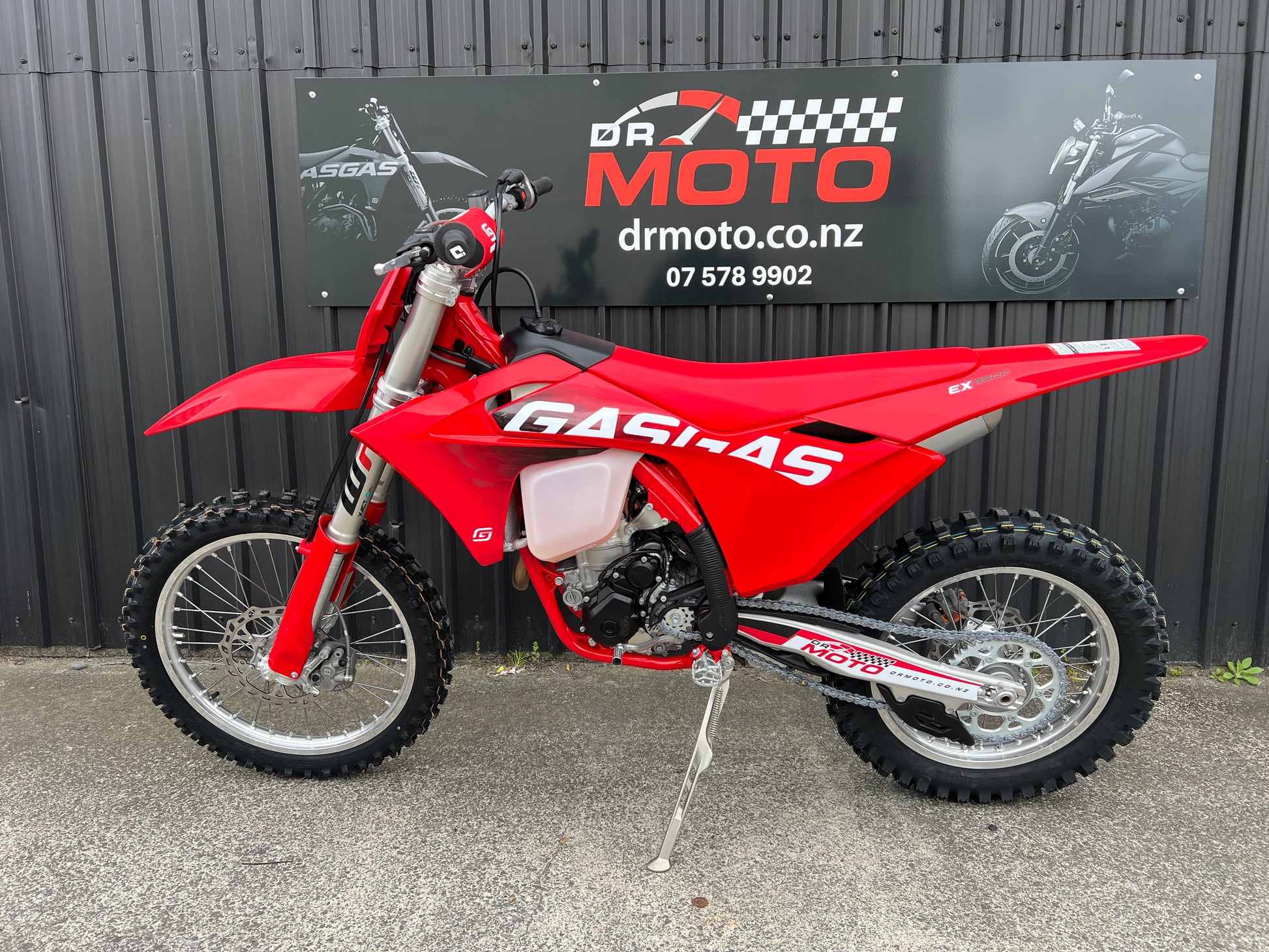

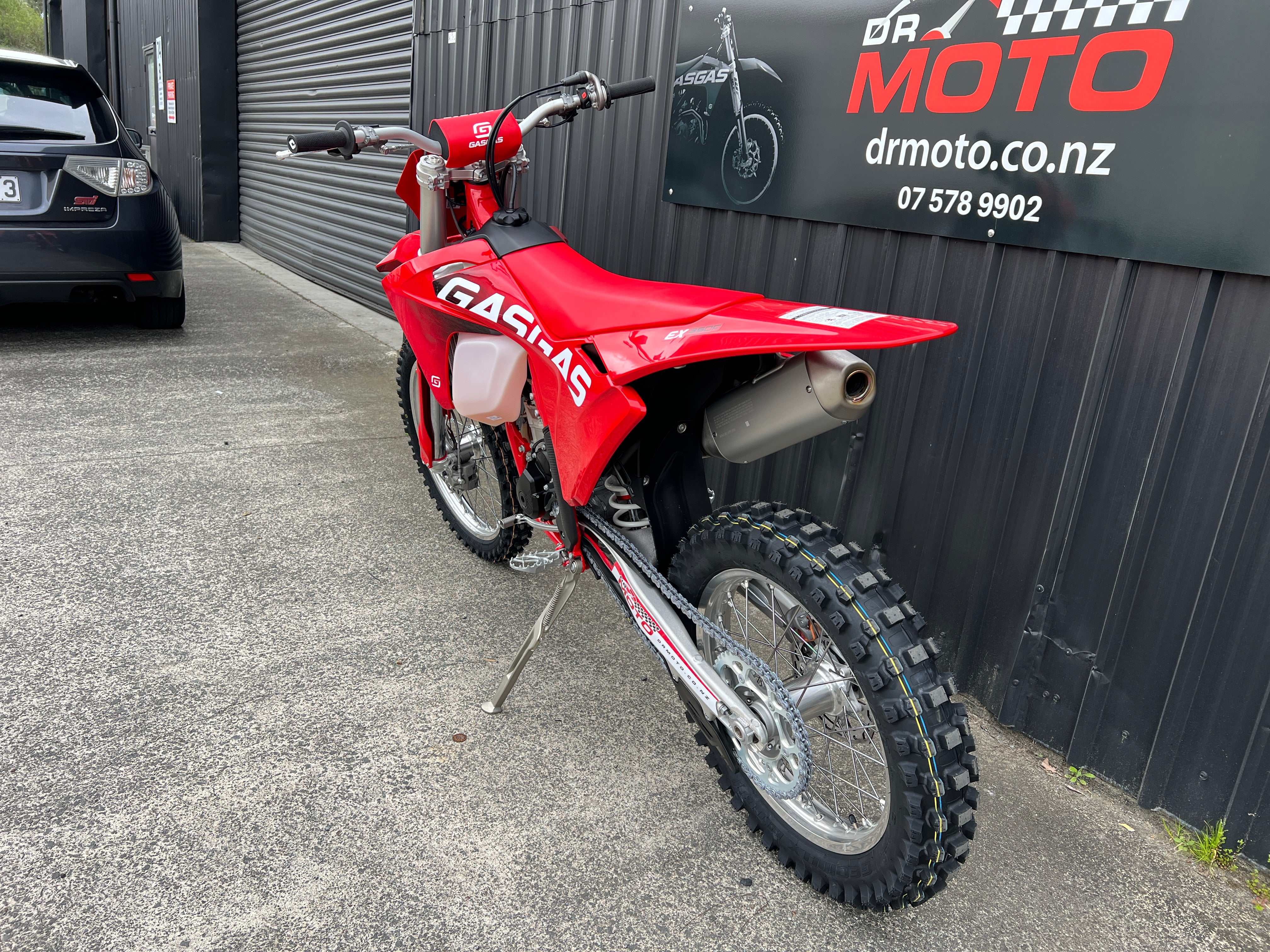

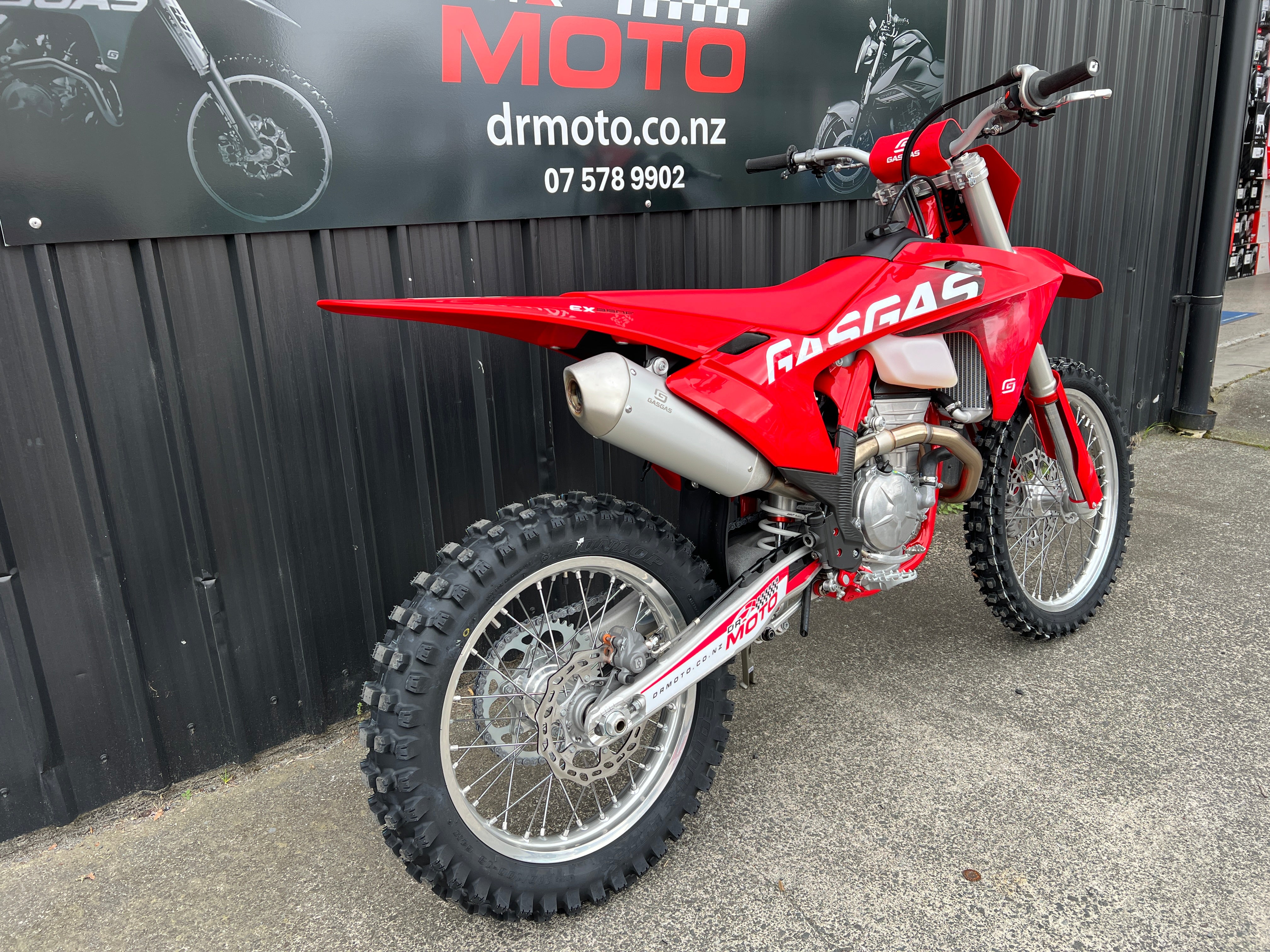

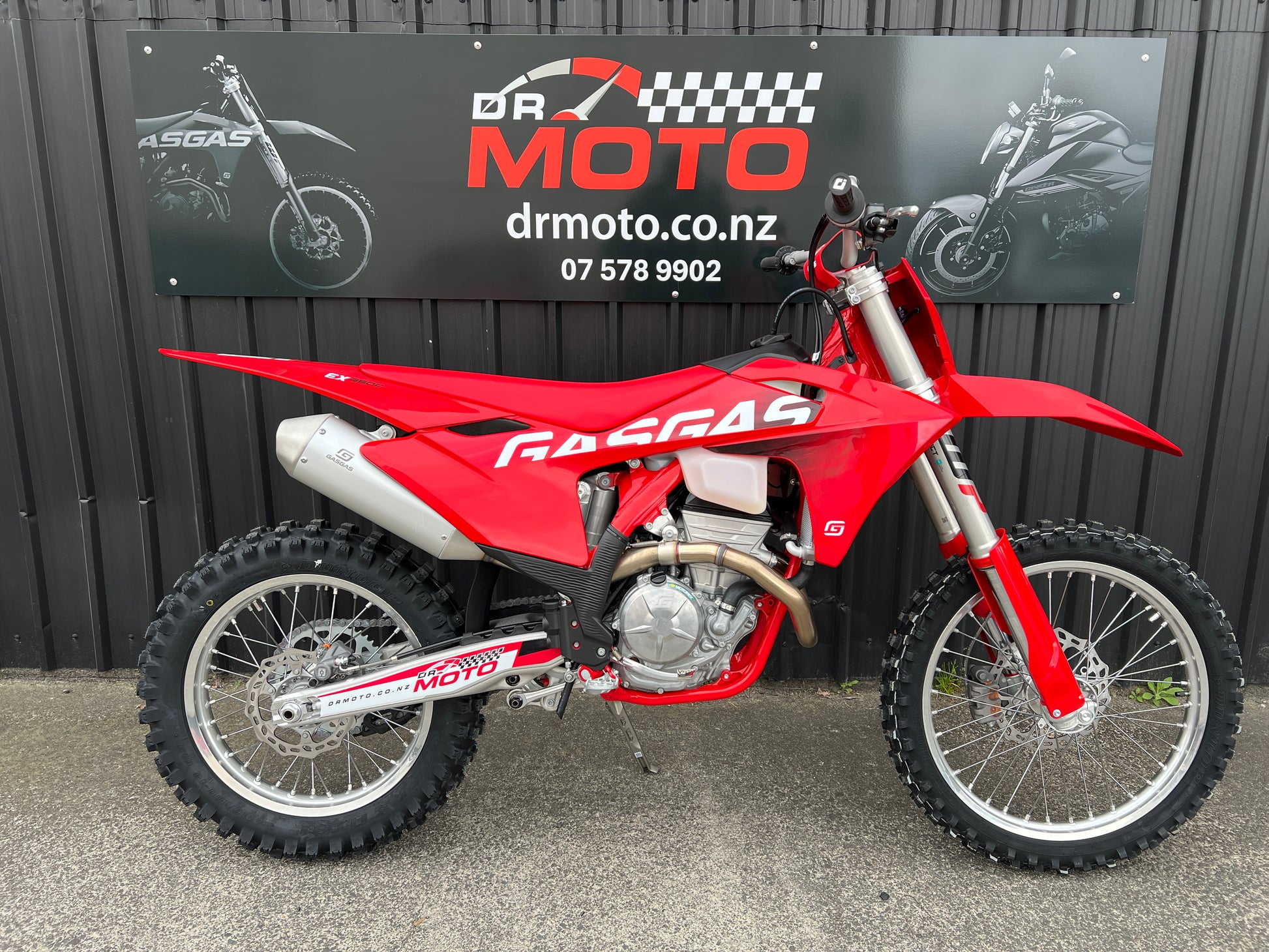

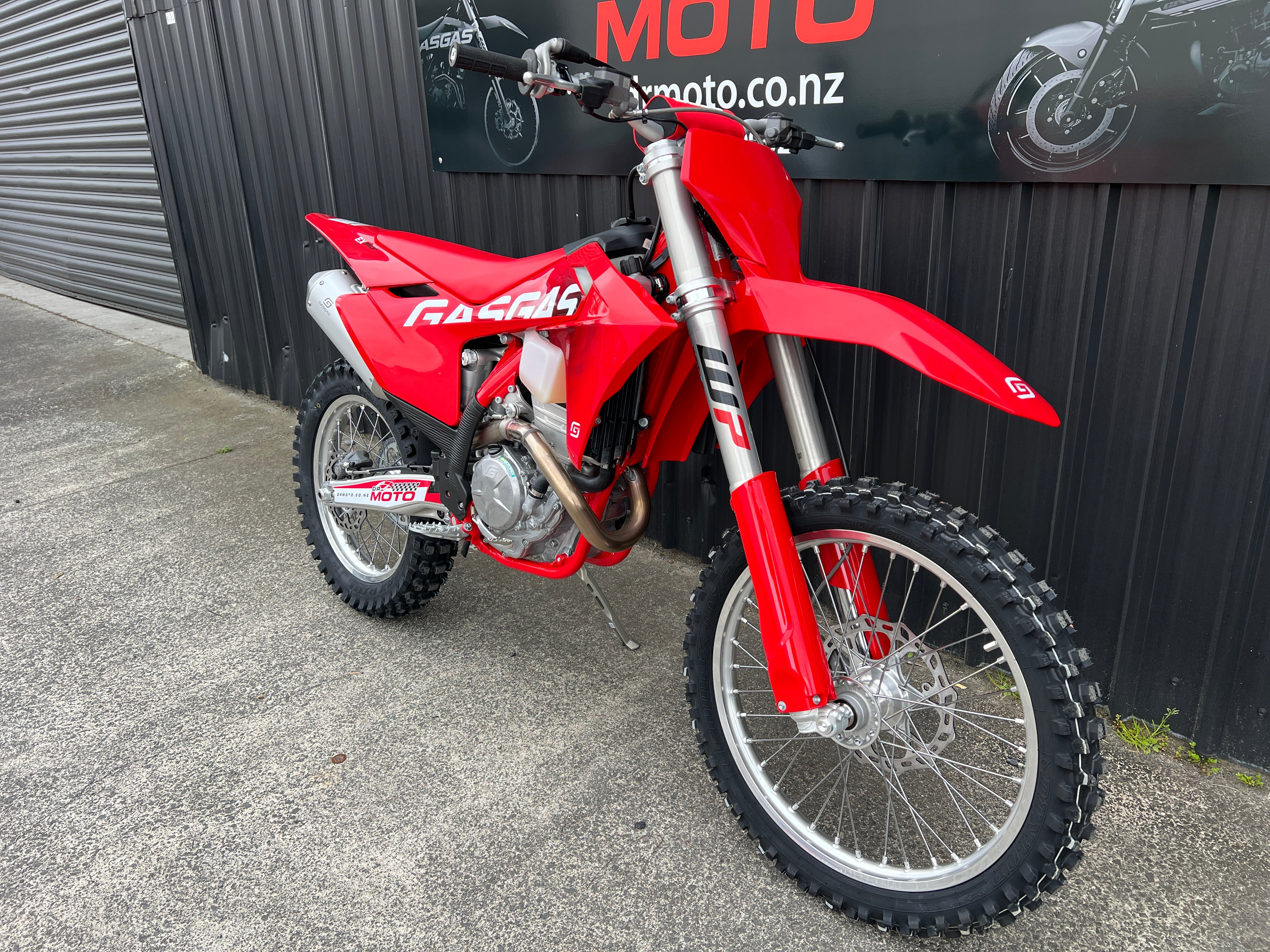

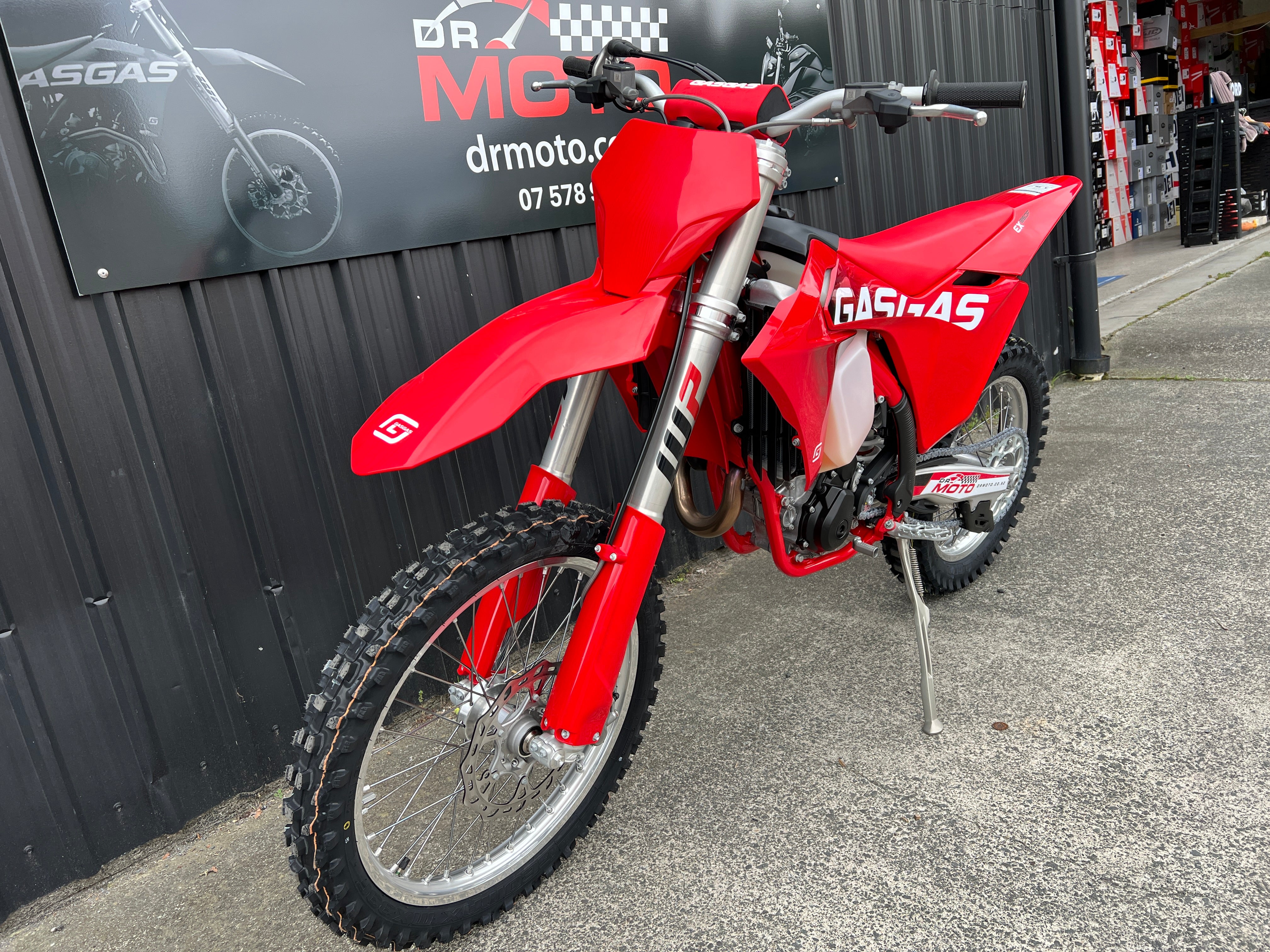

Powered by an all-new DOHC motor that combines the best performance traits of our EX 250F and EX 450F models, the EX 350F can rev to the moon (like our EX 250F) while offering plenty of torque at slower speeds (just like our EX 450F!). Thanks to a new frame, subframe and swingarm, the refined chassis set-up allows you to confidently weave through the woods. What's great is that the improvements don't sacrifice the bike's stability at higher speeds. Try it, you'll love it!

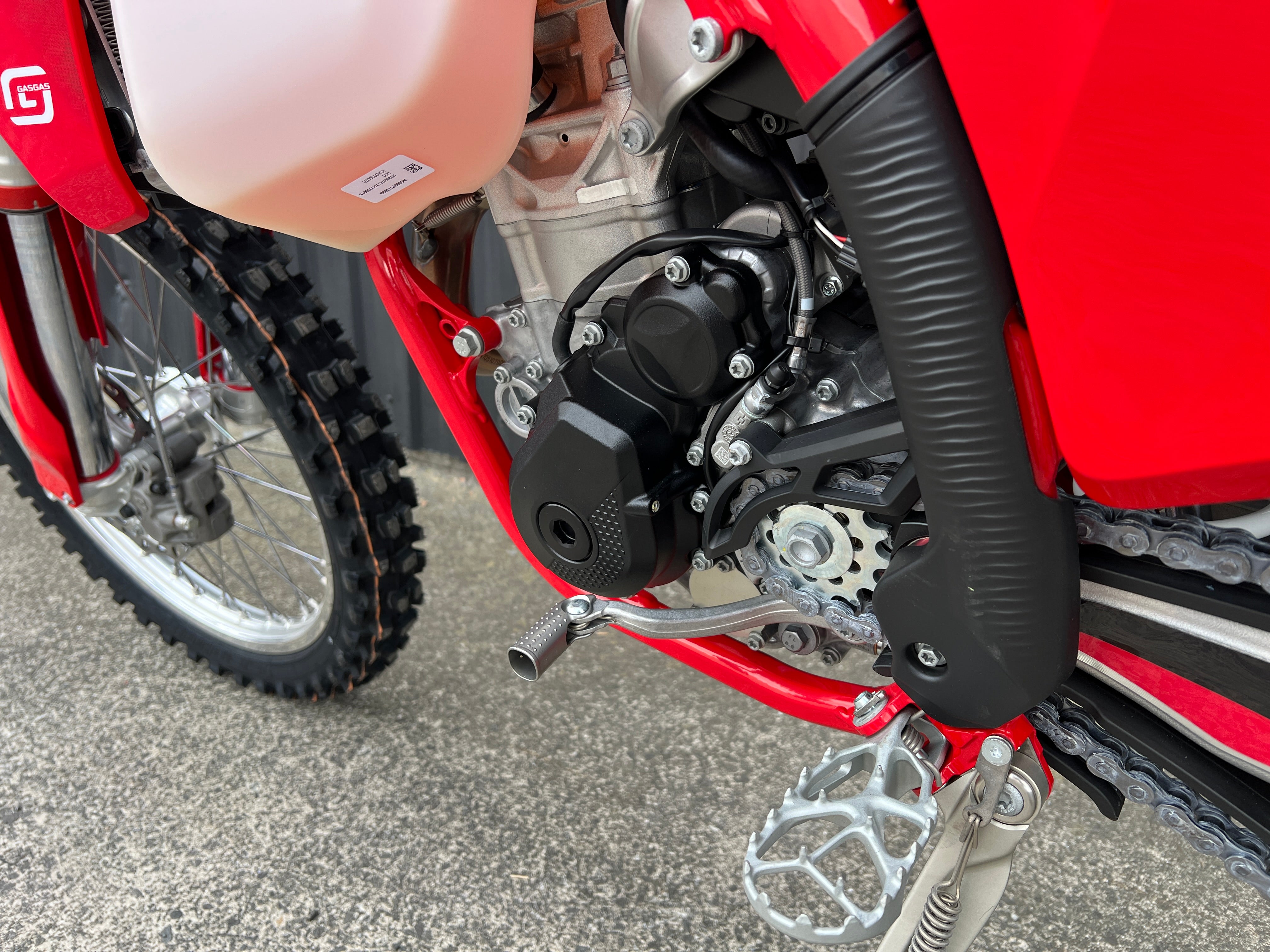

ENGINE
TRANSMISSION 6-speed
BATTERY CAPACITY 2 Ah
COOLING Liquid cooled
STARTER Electric starter
STROKE 57.5 mm
BORE 88 mm
CLUTCH DS wet multi-disc clutch, Braktec hydraulics
DISPLACEMENT 349.7 cm
EMS Keihin EMS
DESIGN1-cylinder, 4-stroke engine
CHASSIS
WEIGHT (WITHOUT FUEL) 105.0 kg
TANK CAPACITY (APPROX.) 9.0 l
FRONT BRAKE DISC DIAMETER 260 mm
REAR BRAKE DISC DIAMETER 220 mm

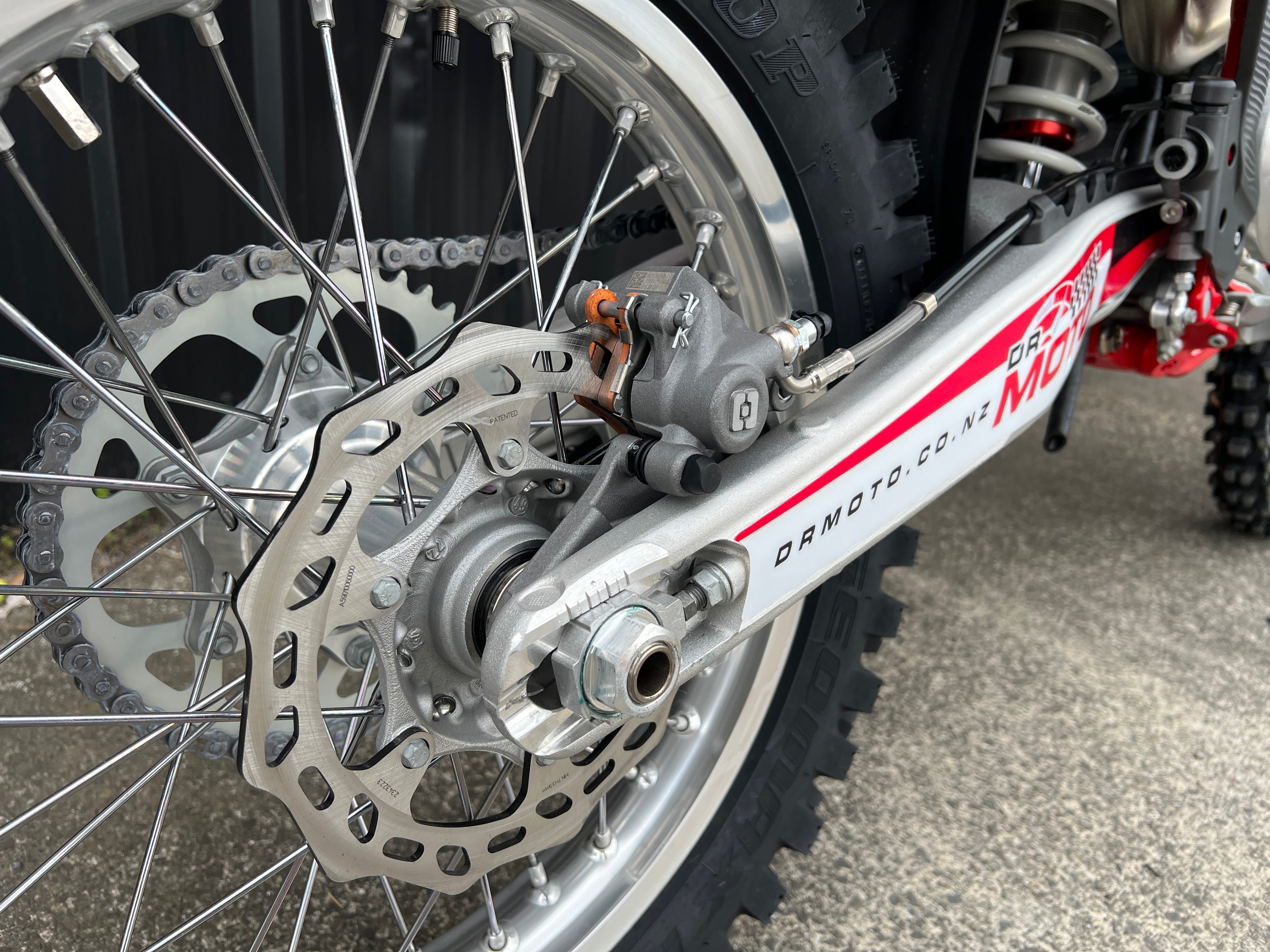

FRONT BRAKE Disc brake
REAR BRAKE Disc brake
CHAIN 520 X-Ring
FRAME DESIGN Central double-cradle-type 25CrMo4 steel

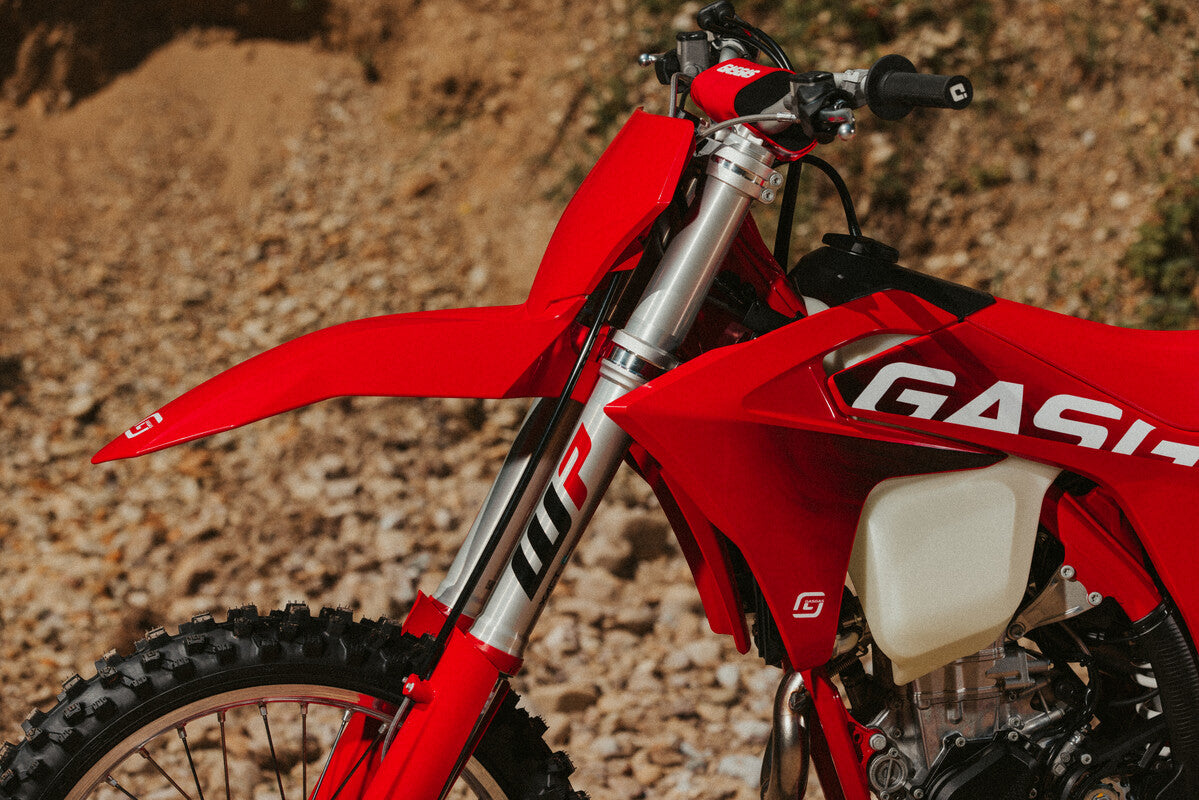

FRONT SUSPENSION WP XACT-USD, 48 mm
GROUND CLEARANCE 354 mm
REAR SUSPENSION WP XACT Monoshock with linkage
SEAT HEIGHT 956 mm
STEERING HEAD ANGLE 63.9
SUSPENSION TRAVEL (FRONT) 300 mm
SUSPENSION TRAVEL (REAR) 300 mm
Similar to KTM 350XCF
