Description
LT-F400F
KingQuad 400 Manual

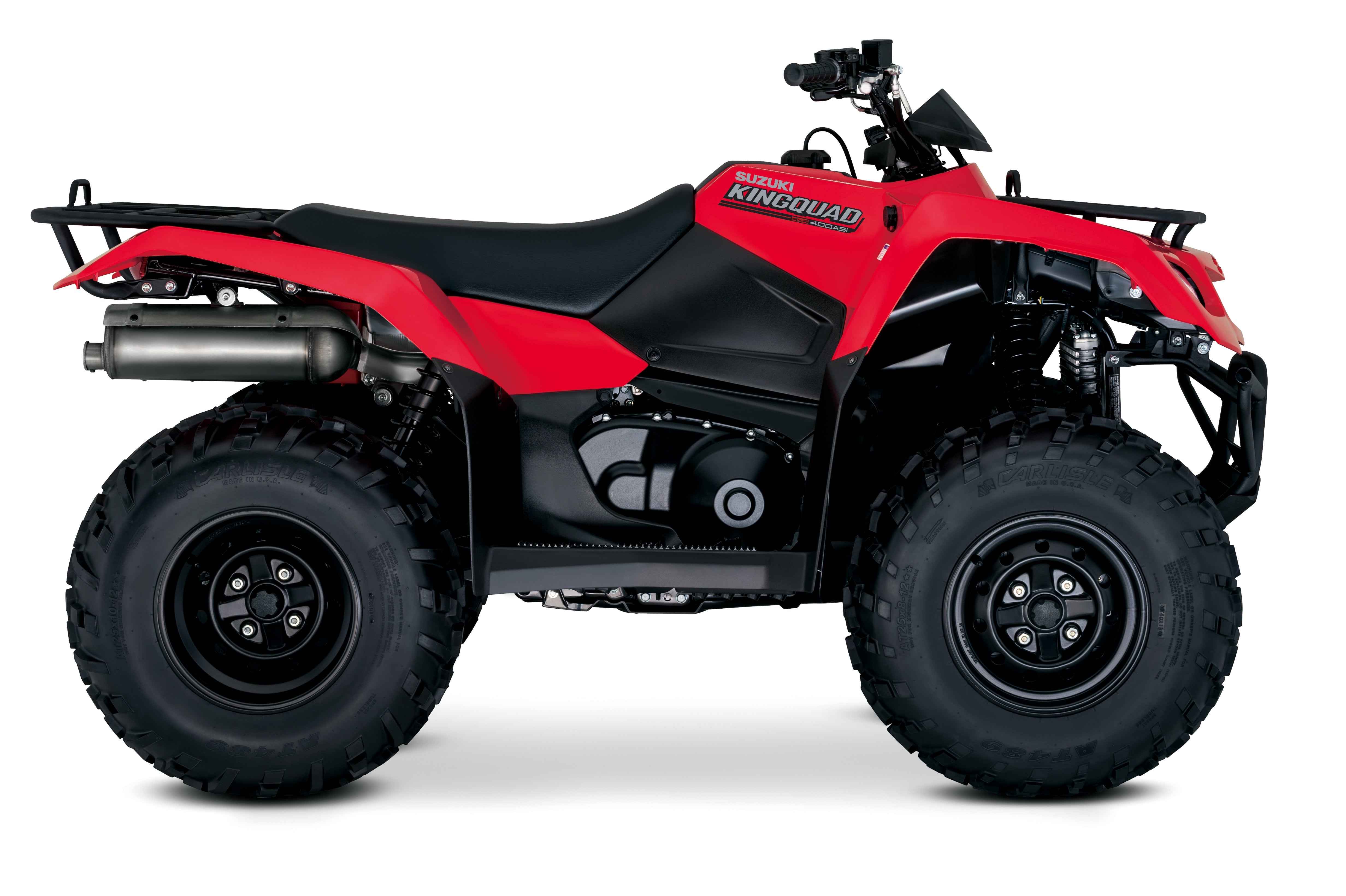

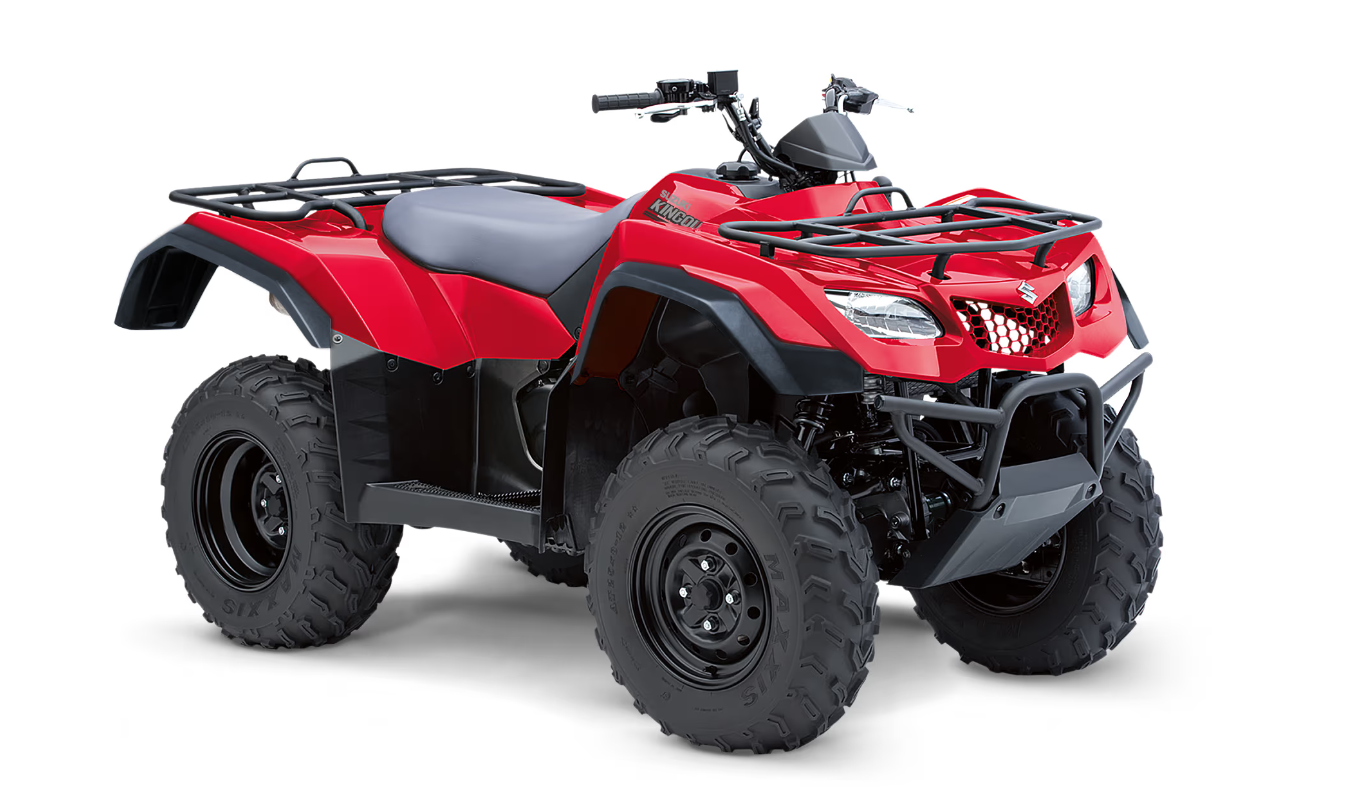

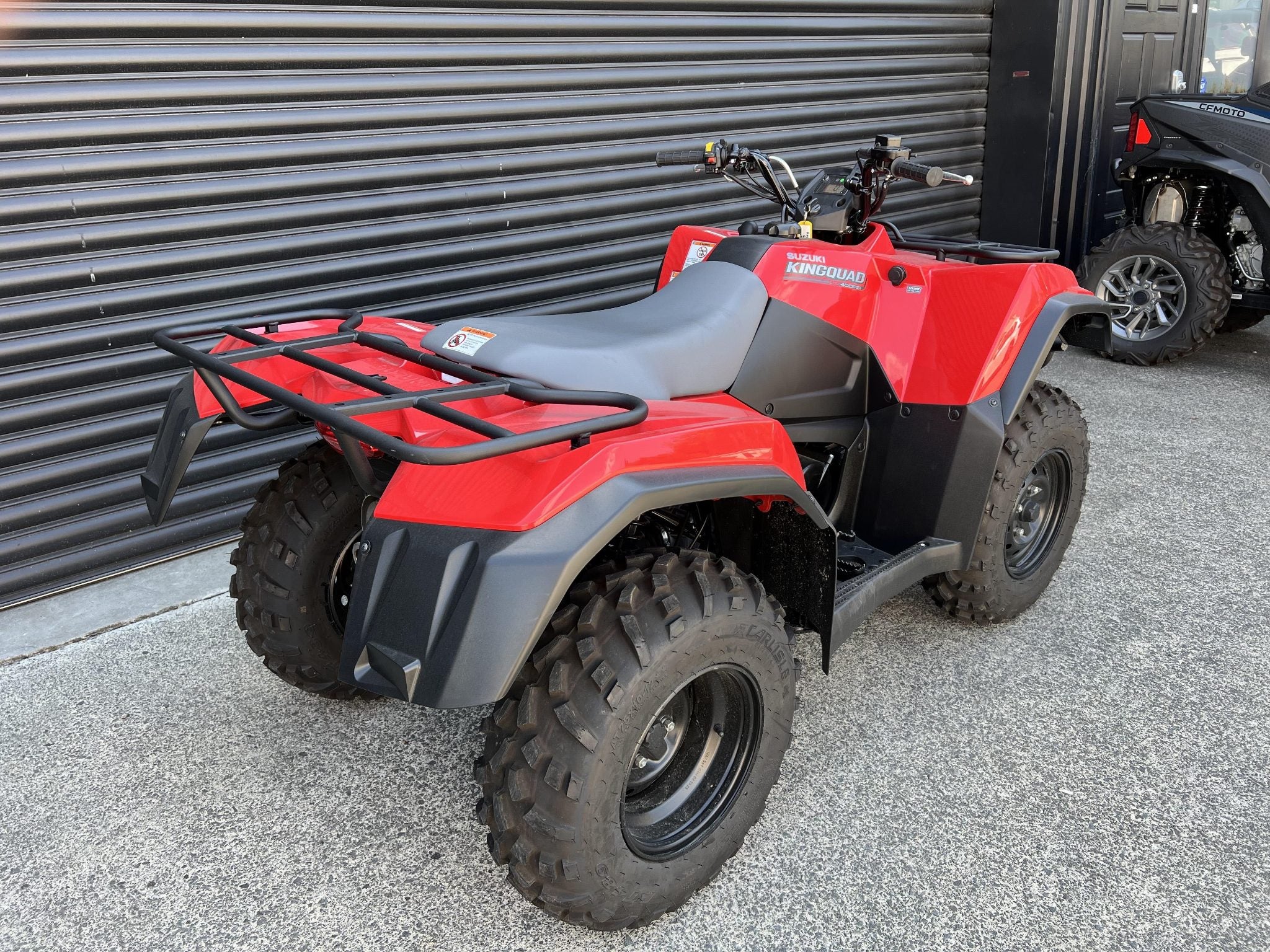

The KingQuad 400 was extensively tested and refined on New Zealand farms and is equipped with an economical fuel-injected 376 cc motor. You will spend less time at the fuel pump and get more k's between fills.

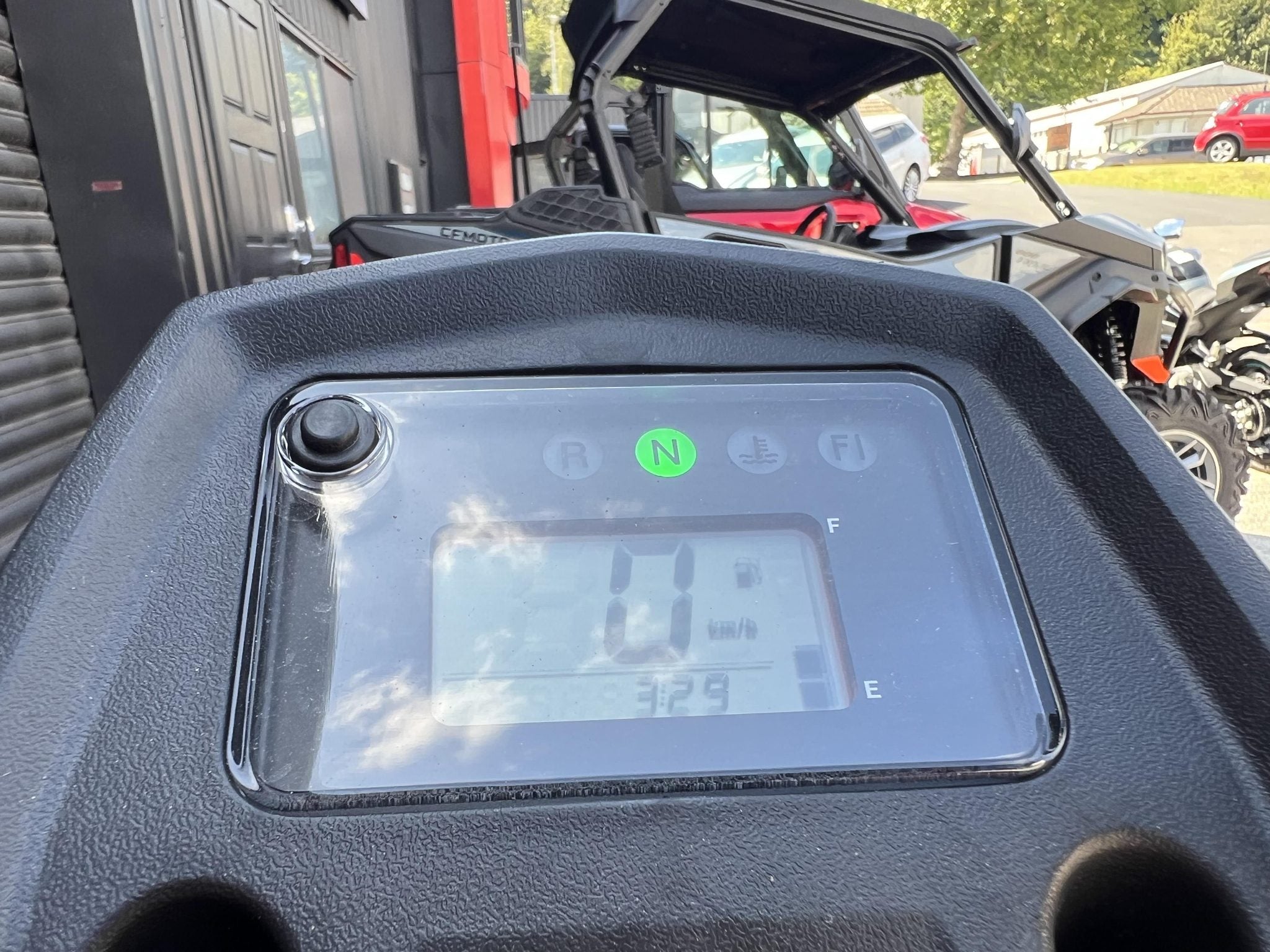

It features a sealed and waterproof LCD digital instrumentation including a speedometer, odometer, trip meter, clock, and fuel gauge. With long travel anti-roll suspension, a twin shock rear end and a low centre of gravity, the KingQuad provides a comfortable and stable ride all day.

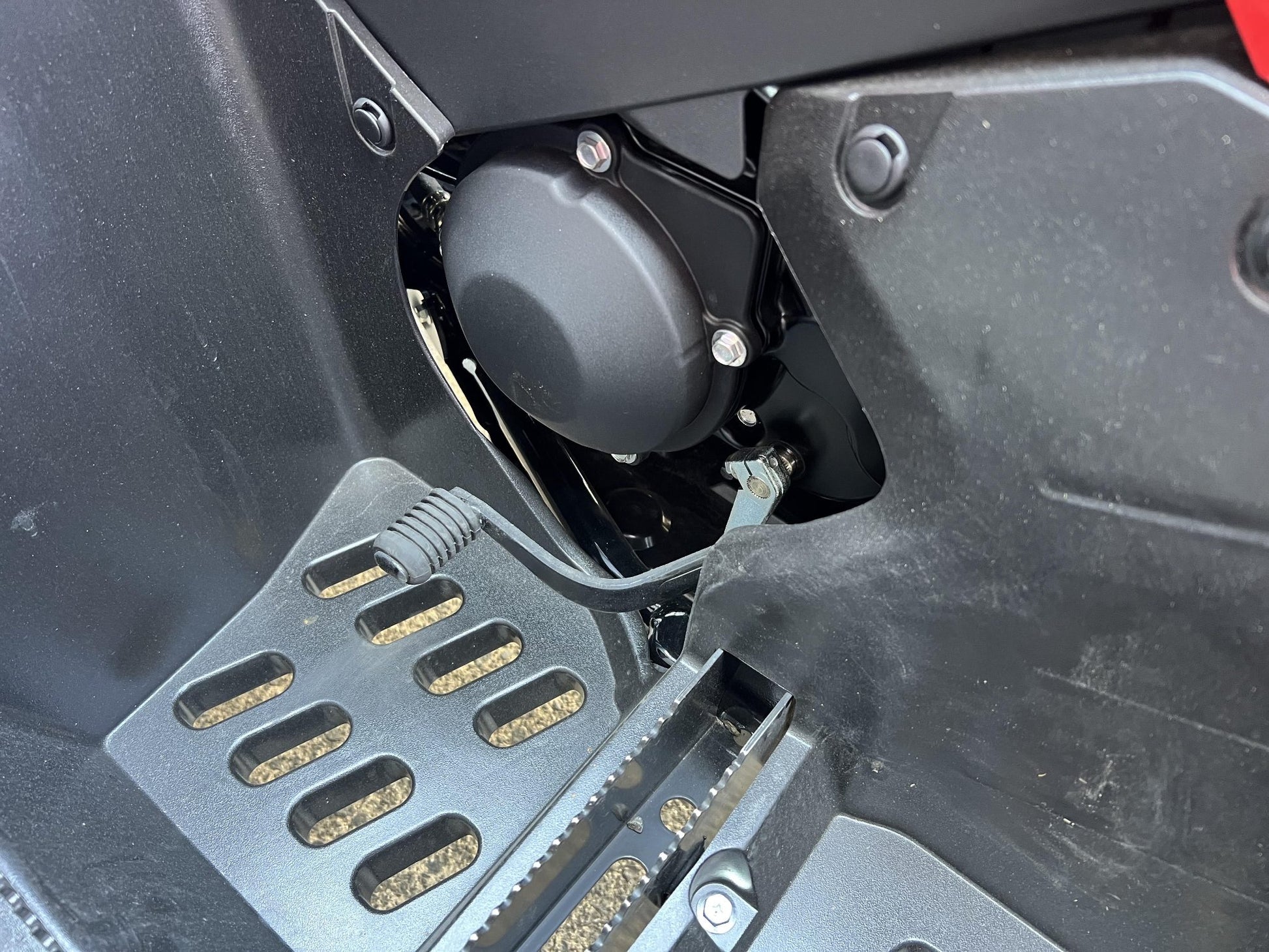

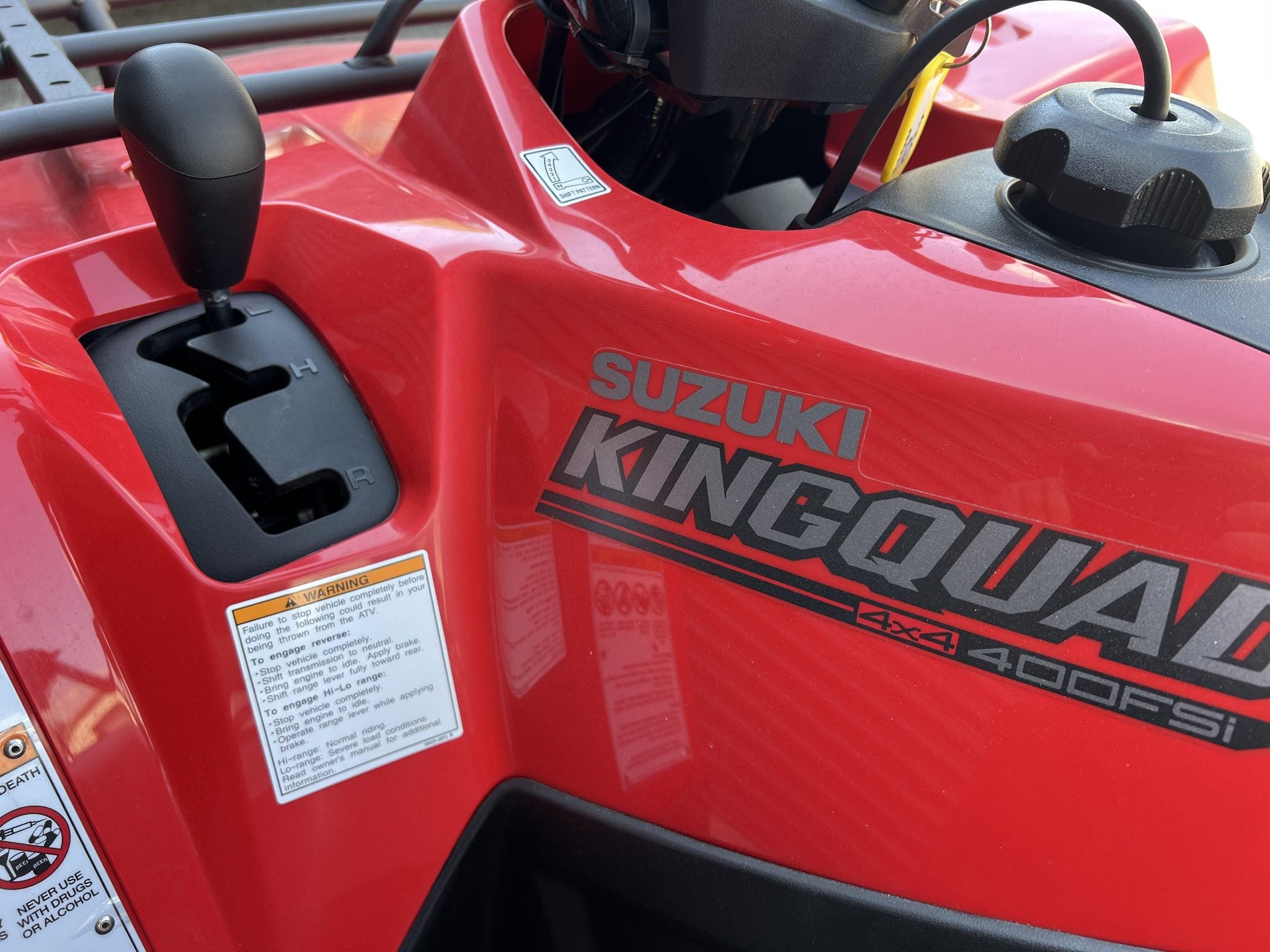

Other features include easy-to-use gate style shift control for easy selection of Hi, Lo and reverse, a torque-sensing limited-slip front diff, that will find grip where it's needed, and selectable 2WD or 4WD, through the 5-speed manual transmission. Also standard are powerful front discs and enclosed rear drums delivering reliable, all-weather stopping and almost un-necessarily a large 16-litre fuel tank.

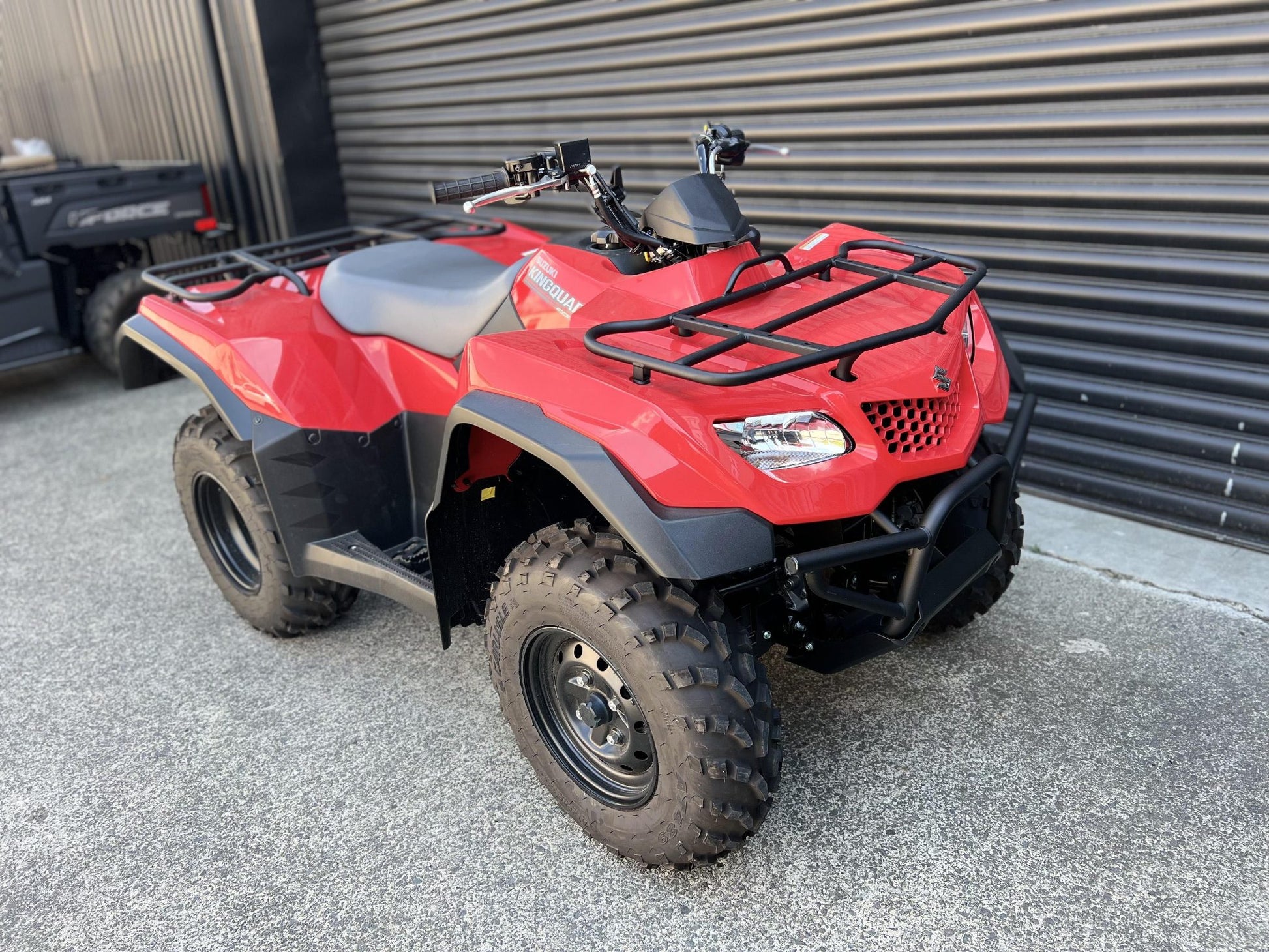

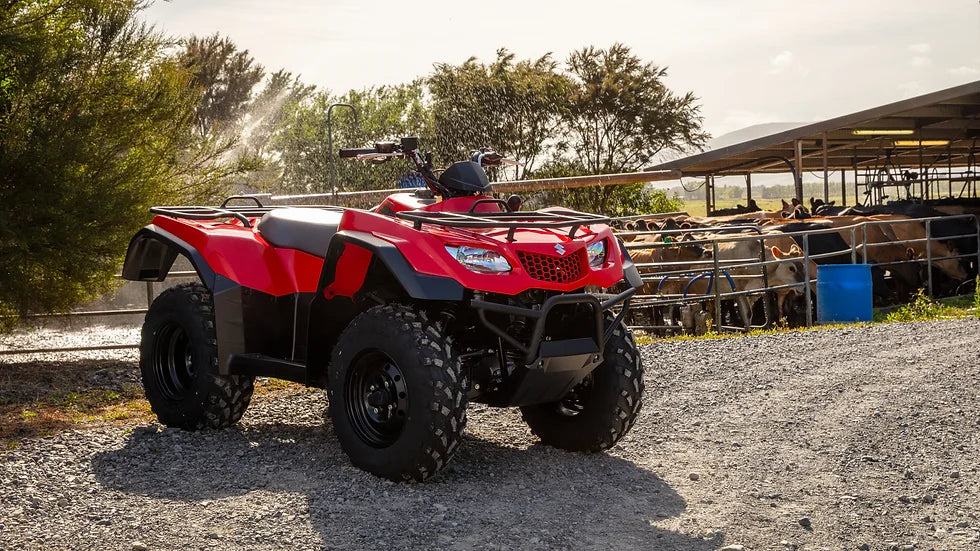

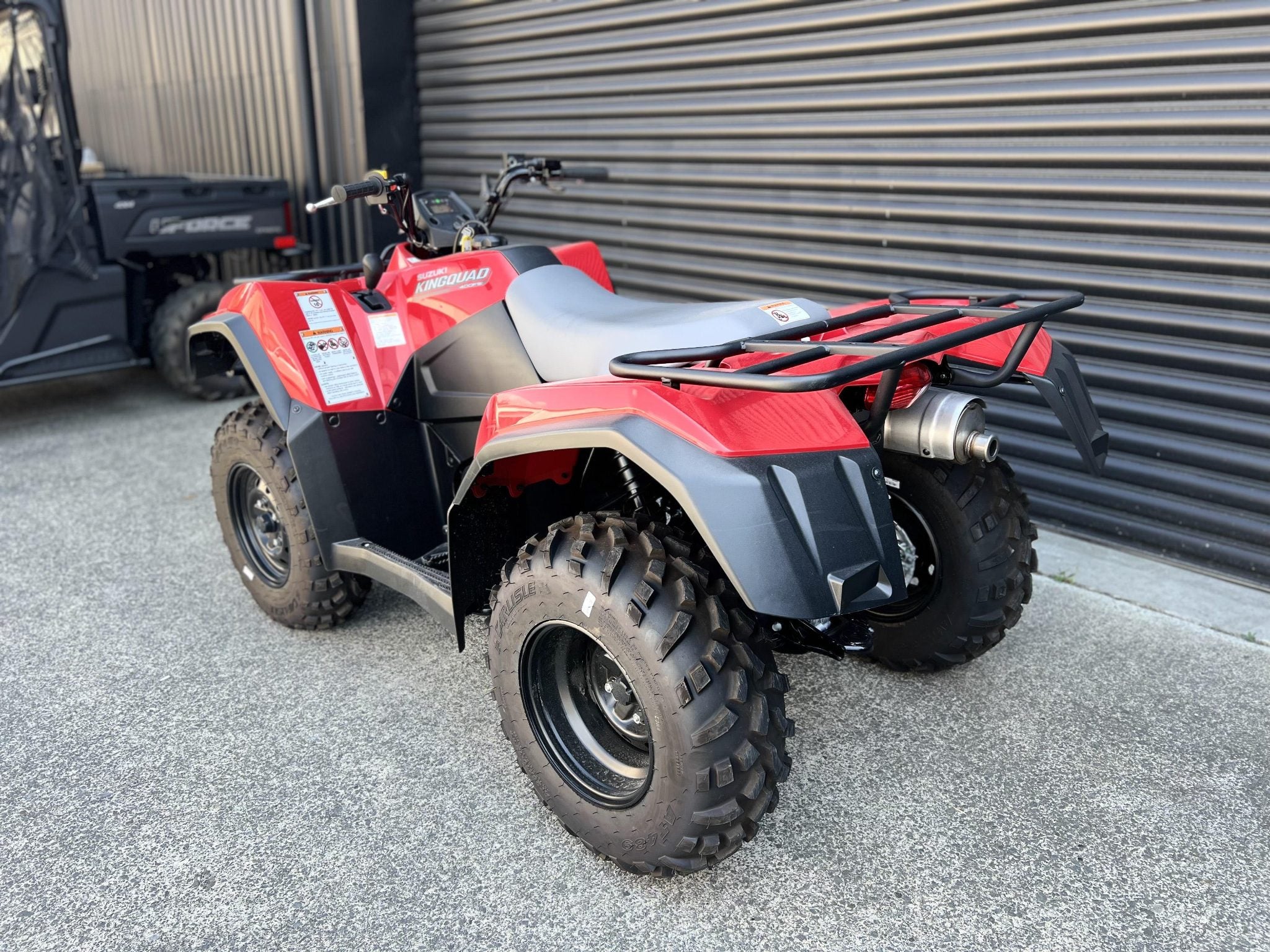

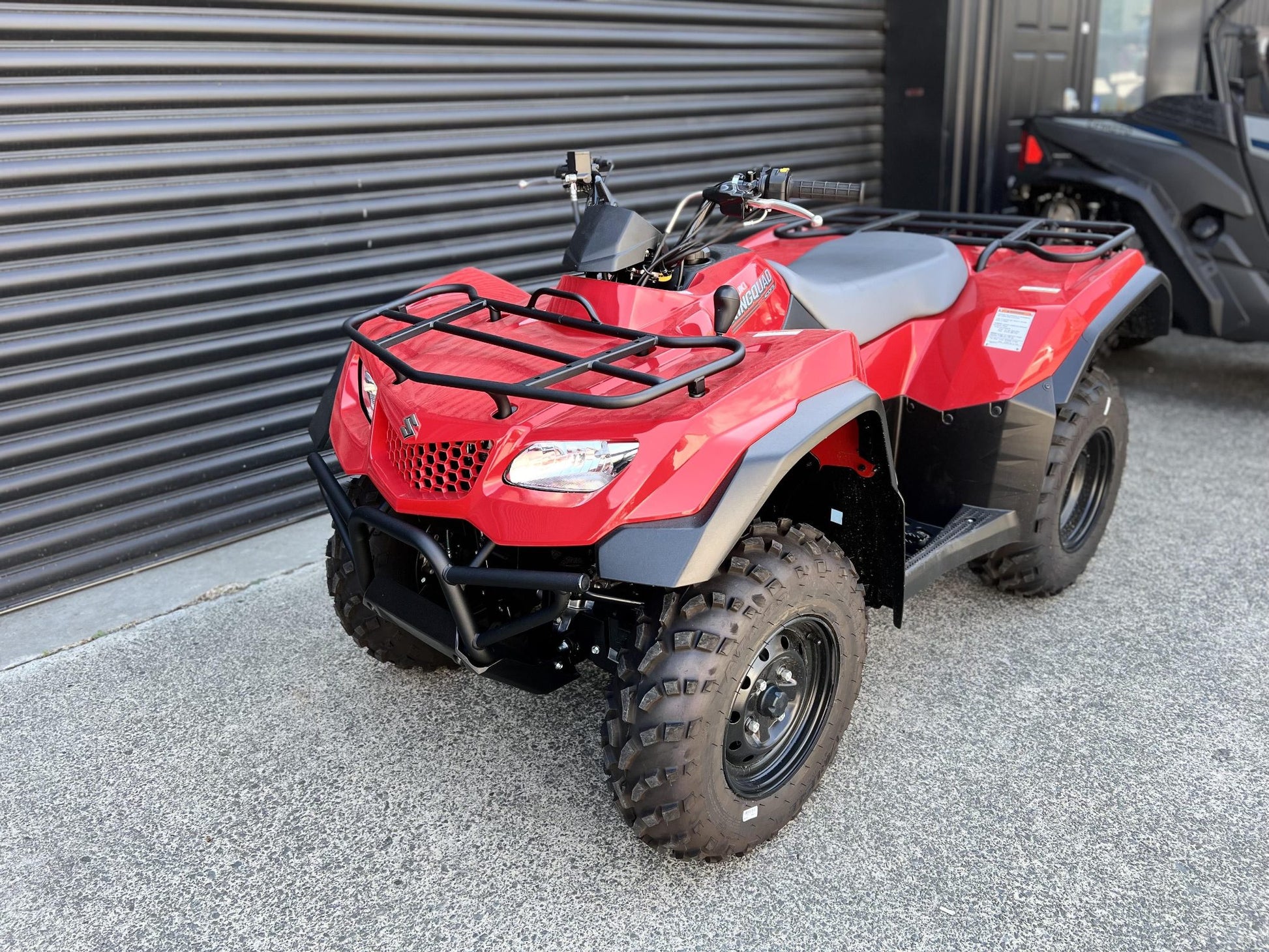

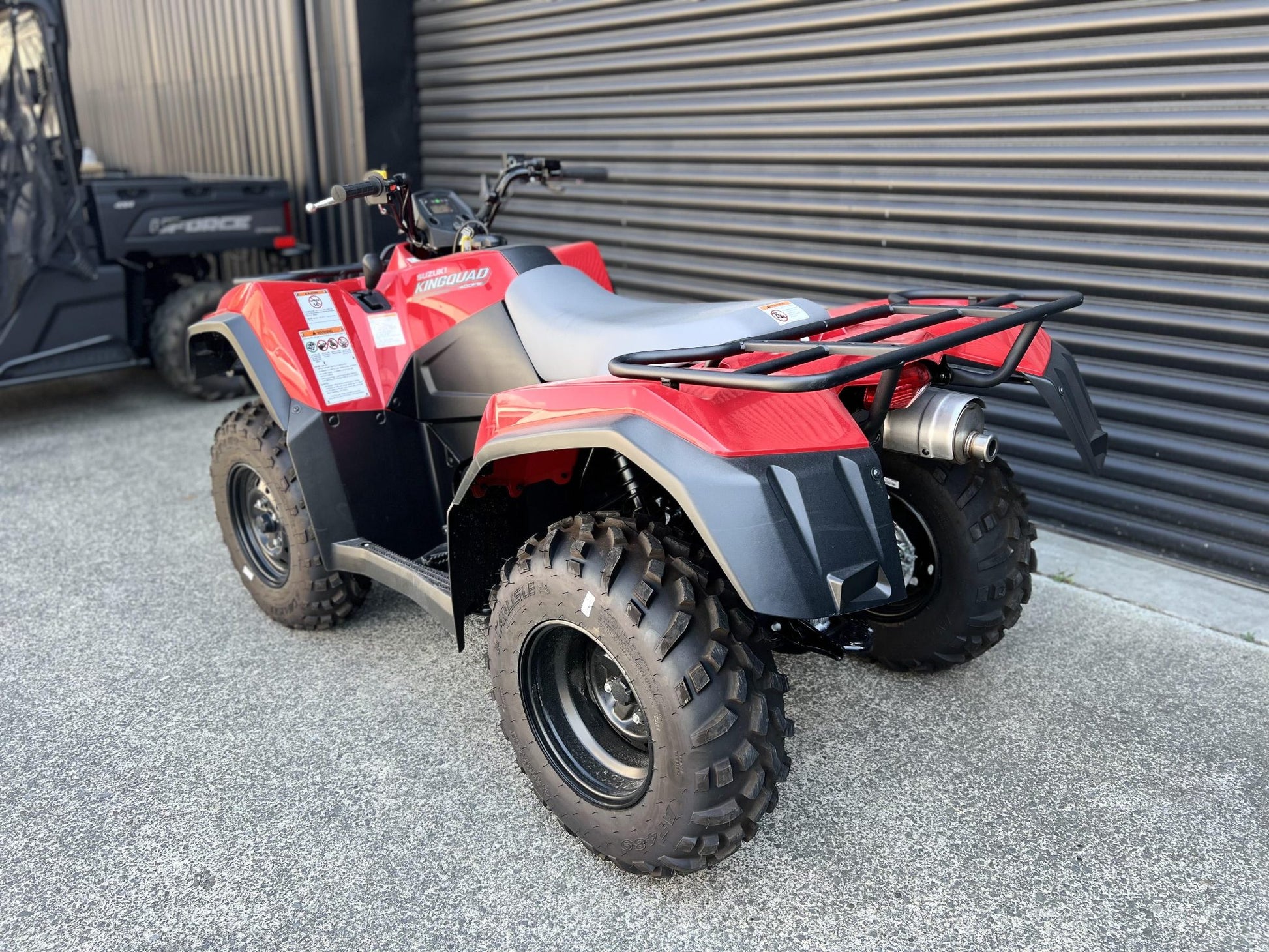

The KingQuad 400 4WD Manual is an ATV designed to meet New Zealand's tough farming conditions. New Zealand's ideal farm ATV.
Specifications
| Engine Type | 4-stroke, air-cooled with SACS, SOHC |
|---|---|
| Engine Displacement (CC) | 376 |
| Bore x Stroke | 82.0 mm x 71.2 mm |
| Transmission | 5-speed forward + 1 reverse |
| Fuel System | Fuel Injection |
| Starter System | Electric |
| Overall Length (mm) | 2160 |
| Overall Width (mm) | 1200 |
| Overall Height (mm) | 1220 |
| Wheelbase (mm) | 1270 |
| Ground Clearance (mm) | 250 |
| Seat Height (mm) | 840 |
| Curb Mass (kg) | 286 |
| Suspension - Front | Independent, double wishbone, coil spring, oil damped |

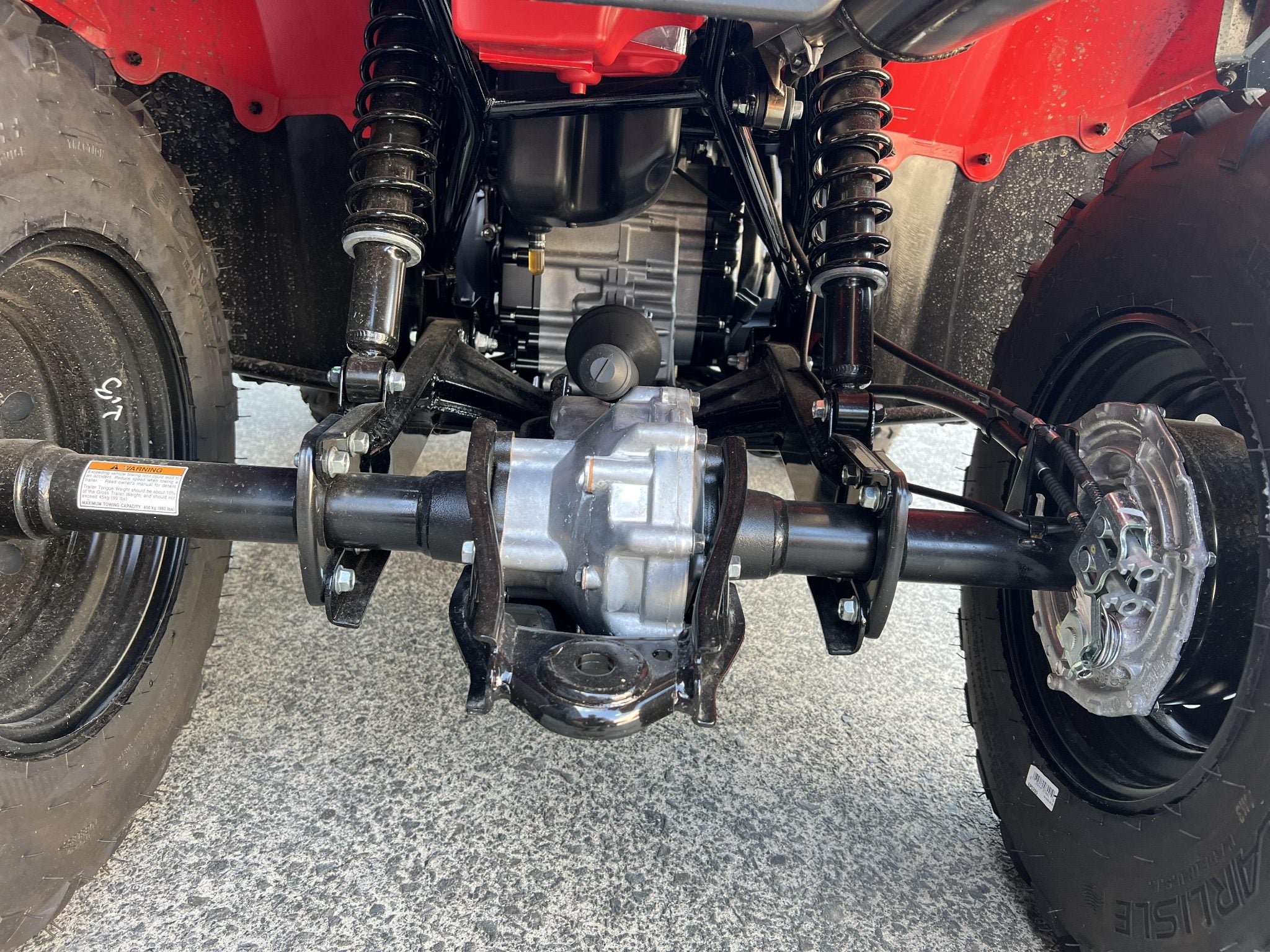

| Suspension - Rear | Swingarm type, coil spring, oil damped |
| Brakes - Front | Disc, twin |
| Brakes - Rear | Drum |
| Tyre - Front | AT25 × 8-12**, tubeless |
| Tyre - Rear | AT25 × 10-12**, tubeless |
| Fuel Tank Capacity (L) | 16 |
Features
- High torque 4 stroke, 4 valve engine
- Fuel-injection
- 5 speed Manual transmission with Hi/Low and reverse
- In-gear starting ability

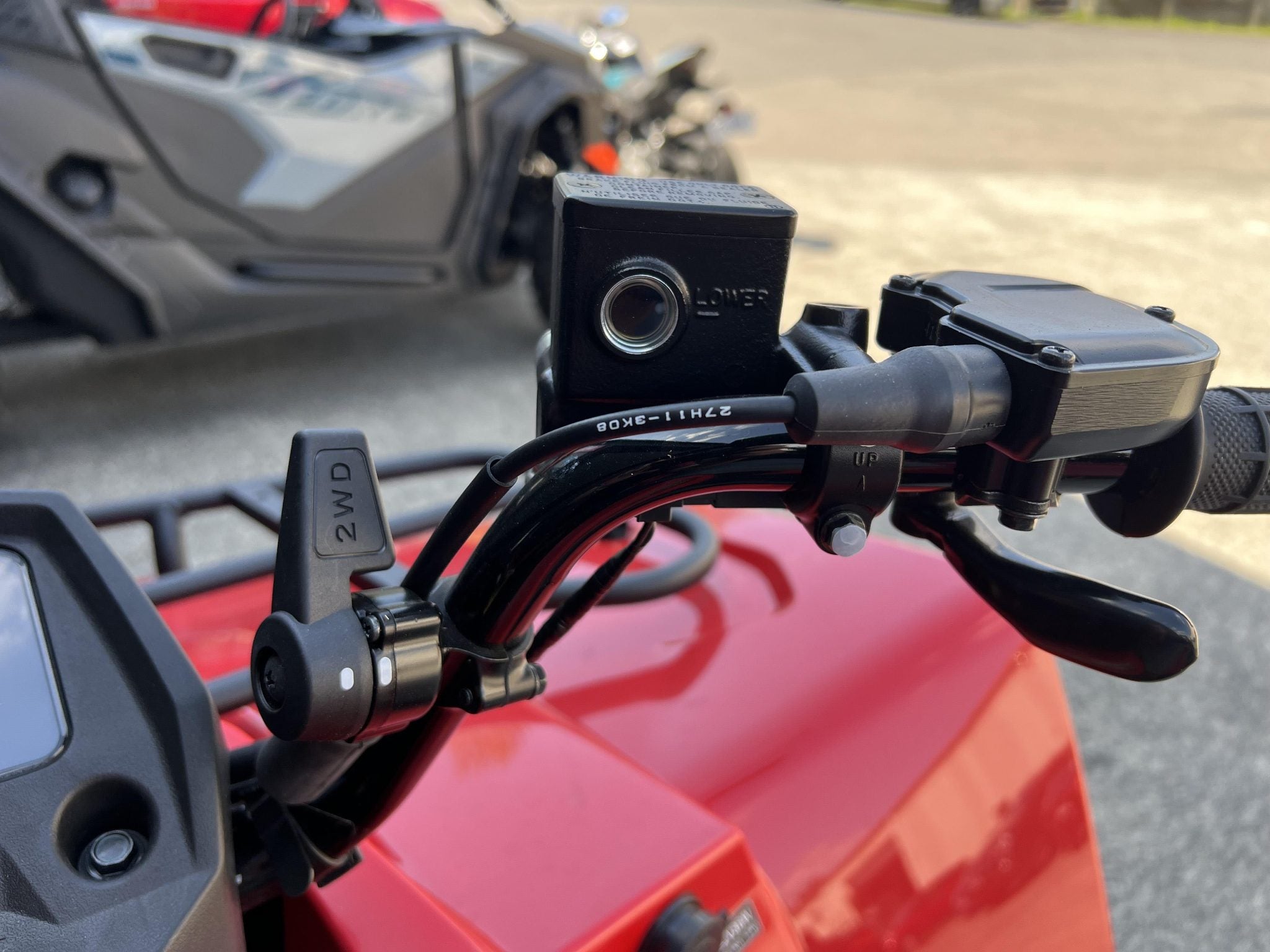

- 2WD/4WD handlebar control
- Large 16 litre fuel tank
- Comfortable T-shaped seat
- Torque sensing limited slip front differential

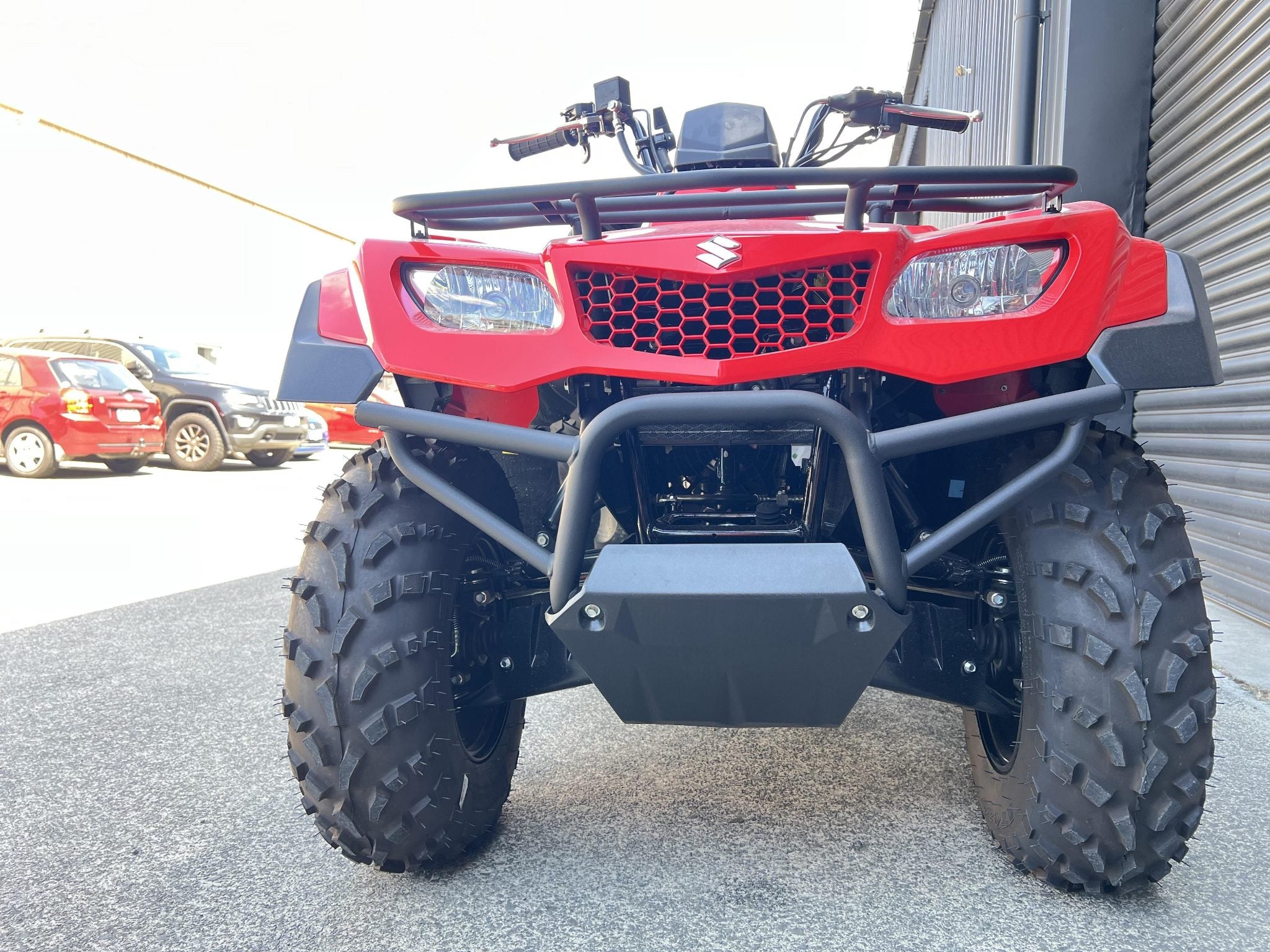

- High radius fenders and large front bumper
- 30W multi reflector headlights

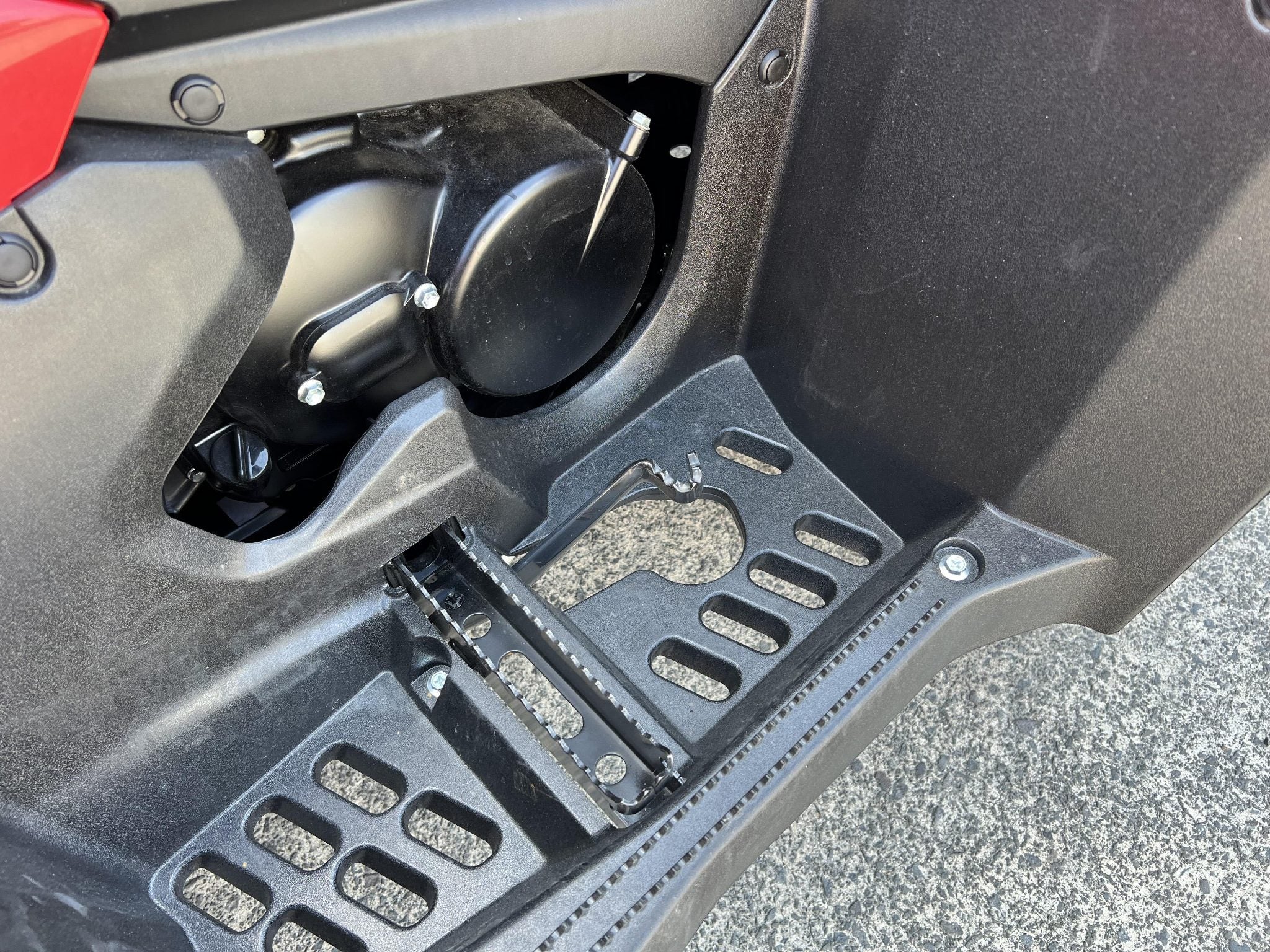

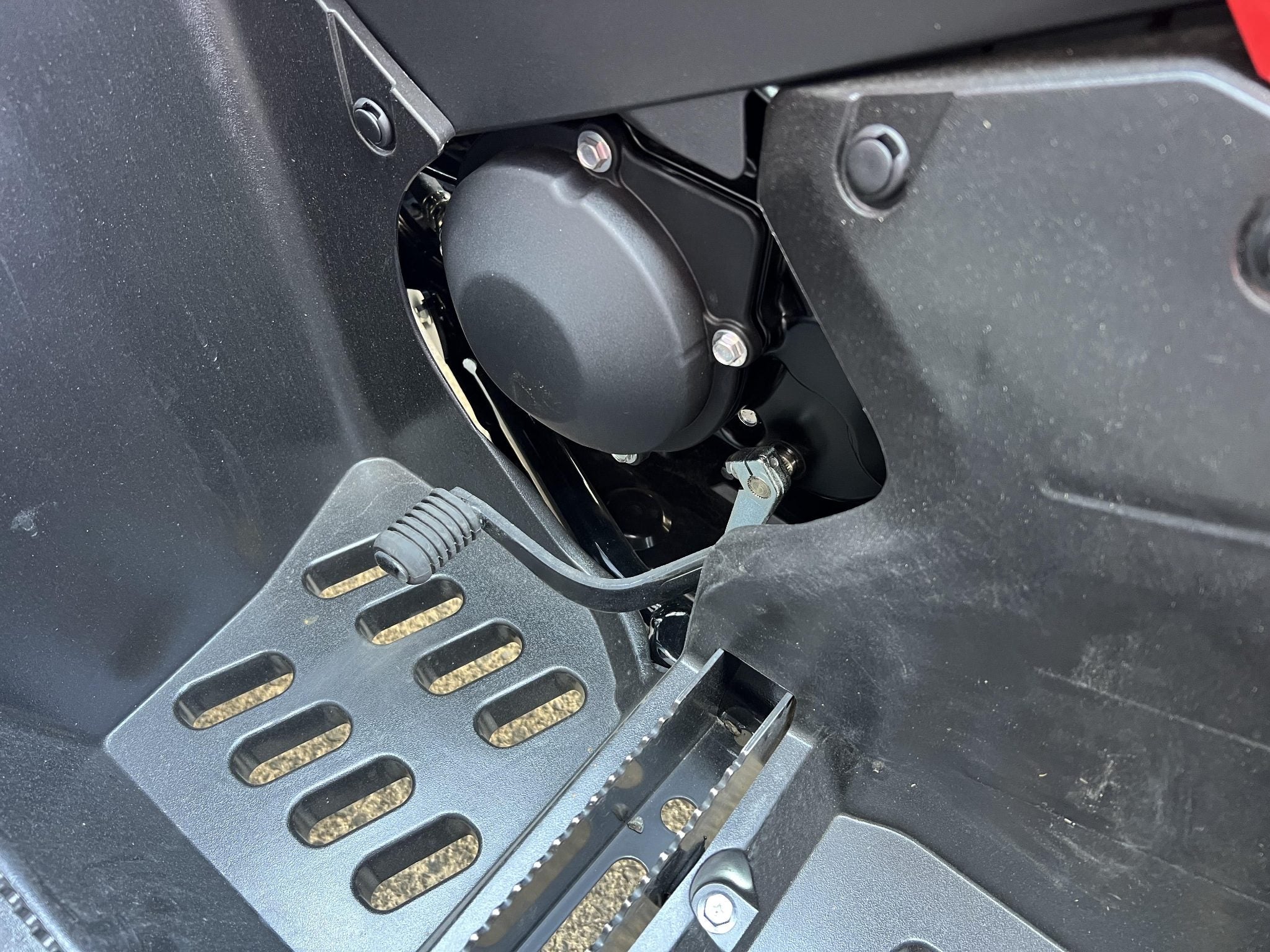

- Full footboards provide ultimate protection
- Downhill engine braking
- Towing capacity up to 450kg
- 3-YEAR FACTORY WARRANTY
