Description

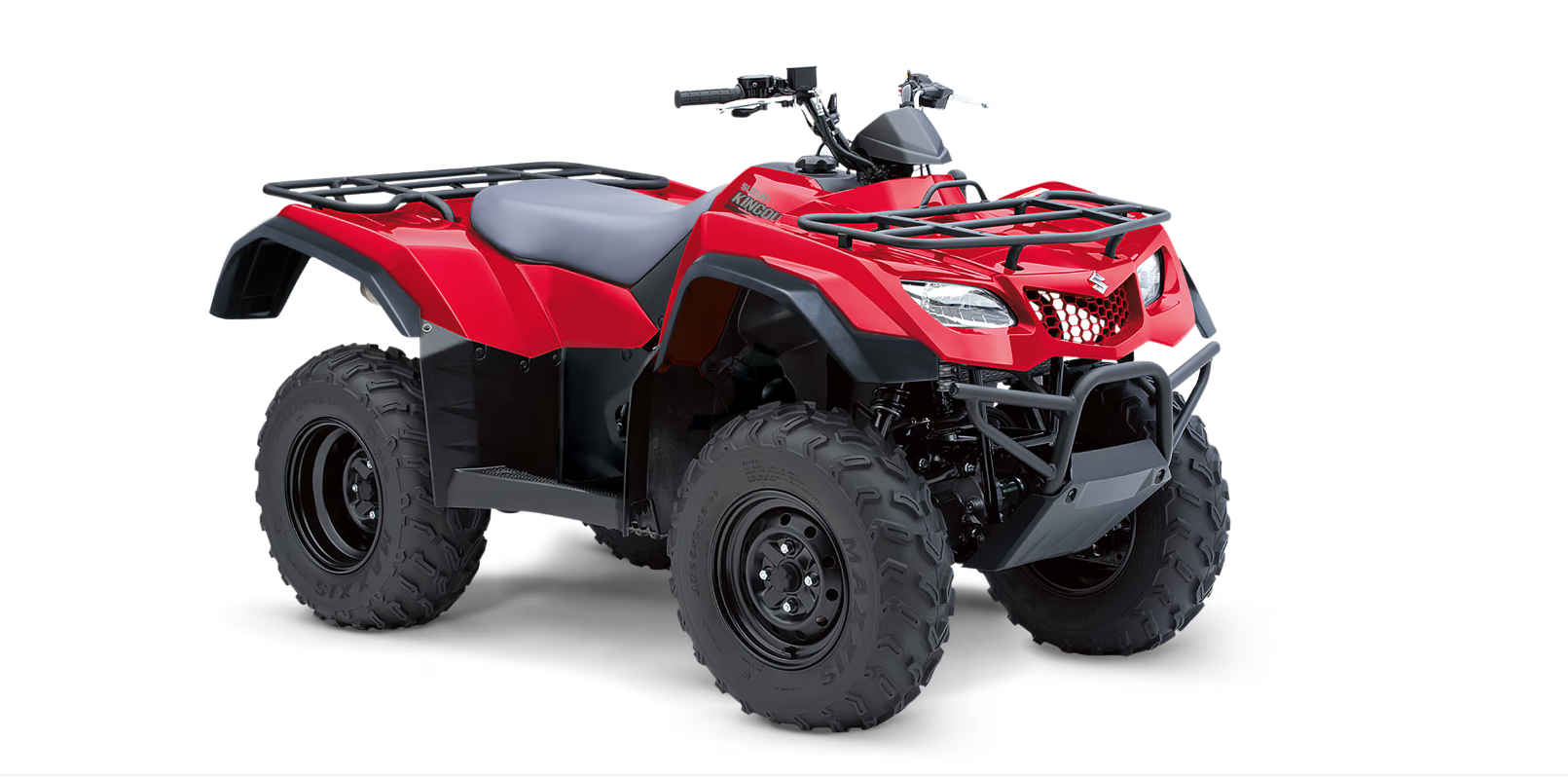

LT-A400F
KingQuad 400 Auto
No matter what the conditions, you've got to work, and so does your quad. whether you're slogging it out in the summer heat, or up to the top of your gumboots in a miserably wet winter, you'll appreciate the reliability and ll day comfort the KingQuad 400 offers.
Features include a sealed and waterproof LCD digital instrumentation including speedometer, odometer, trip meter, clock, and fuel gauge. With long-travel anti-roll suspension, a twin shock rear end and a low centre of gravity, the KingQuad 400 provides you with all-day comfort and a stable ride. Easy to use gate style shift control for easy selection of Hi, Lo and reverse plus a torque-sensing limited slip front diff, that will find grip where it’s needed.
This no-nonsense farm quad delivers the goods in spades.
Specifications
| Engine Type | 4-stroke, air-cooled with SACS, SOHC |
|---|---|
| Engine Displacement (CC) | 376 |
| Bore x Stroke | 82.0 mm x 71.2 mm |
| Transmission | Automatic |
| Fuel System | Fuel Injection |
| Starter System | Electric |
| Overall Length (mm) | 2160 |
| Overall Width (mm) | 1200 |
| Overall Height (mm) | 1220 |
| Wheelbase (mm) | 1270 |
| Ground Clearance (mm) | 250 |
| Seat Height (mm) | 840 |
| Curb Mass (kg) | 292 |
| Suspension - Front | Independent, double wishbone, coil spring, oil damped |
| Suspension - Rear | Swingarm type, coil spring, oil damped |
| Brakes - Front | Disc, twin |
| Brakes - Rear | Drum |
| Tyre - Front | AT25 × 8-12**, tubeless |
| Tyre - Rear | AT25 × 10-12**, tubeless |
| Fuel Tank Capacity (L) | 16 |
Features
- High torque 4 stroke, 4 valve engine
- Fuel-injection
- CVT automatic transmission with Hi/Low and reverse
- In-gear starting ability
- 2WD/4WD handlebar control
- Large 16-litre fuel tank
- Comfortable T-shaped seat
- Torque-sensing limited slip front differential
- High radius fenders and large front bumper
- 30W multi-reflector headlights
- Full footboards provide ultimate protection
- Downhill engine braking
- Towing capacity up to 450kg
- 3-YEAR FACTORY WARRANTY
